Multi-purpose tray pickup roller
Use the following steps to remove the multi-purpose tray pickup roller.
To remove the multi-purpose tray pickup roller
1. Remove the Tray 2 cassette.
2. Unhook the two tabs shown in callout 1, and open the cover.

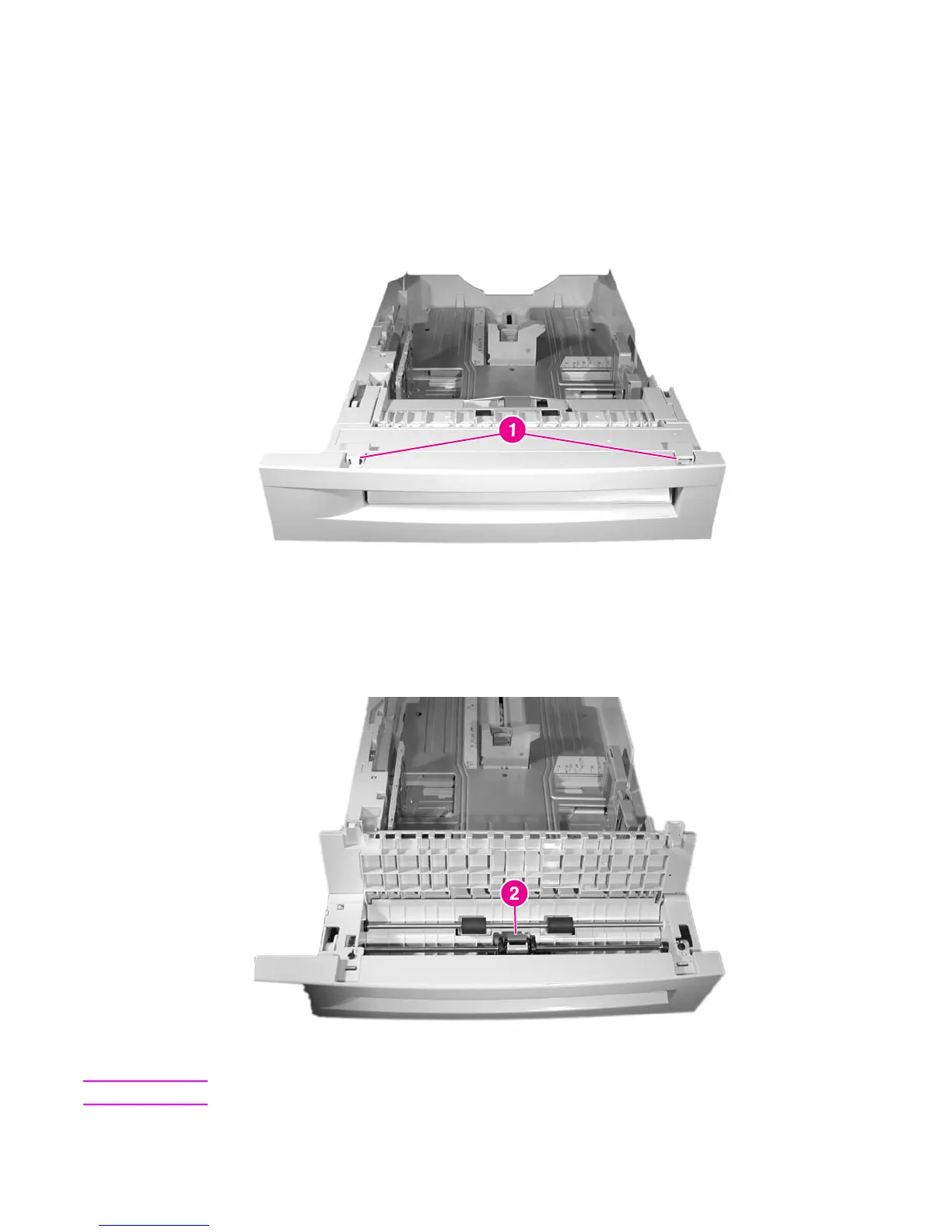

Figure 6-28.
Removing and replacing the multi-purpose tray pickup roller (1 of 2)
3. Rotate the roller so the blue snap is on top. Release the blue snap by prying it with a flat-
blade screwdriver (callout 2).
4. Lift the roller off of the shaft.
Figure 6-29.
Removing and replacing the multi-purpose tray pickup roller (2 of 2)
Note
Always replace the separation pad when you replace the multi-purpose tray pickup roller.
ENWW Internal components (front) 207
