HP LaserJet 2100 - Page 253

C4170-90959 Parts Removal Tree 241
5 Repeat step 7 through step 9 to move the right idler roller.

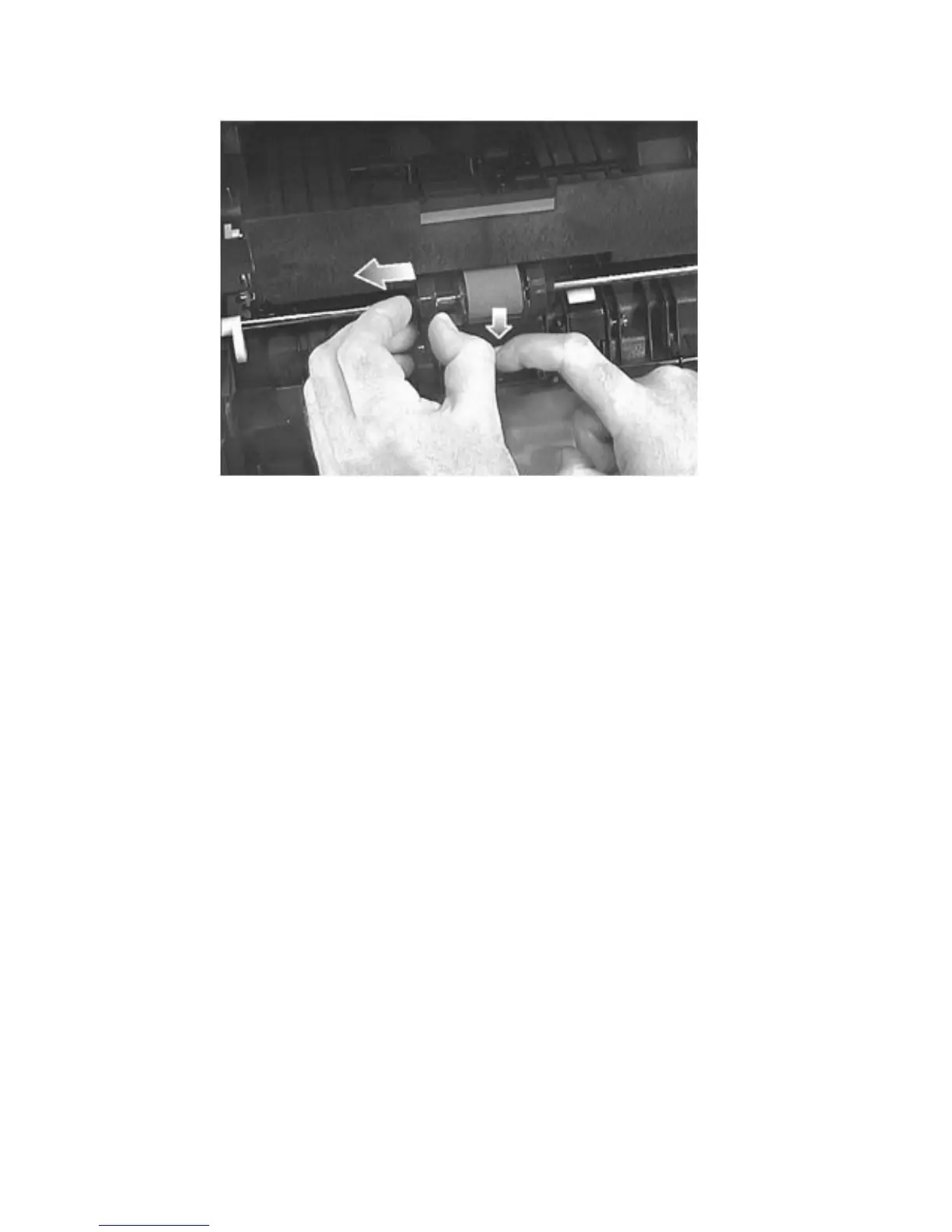

Figure 7-116 Repositioning the Idler Roller
6 Press and hold the release mechanism (see figure 7-117) on the pickup roller, and then
slide it to the right (see figure 7-118).
