232 Troubleshooting ENWW

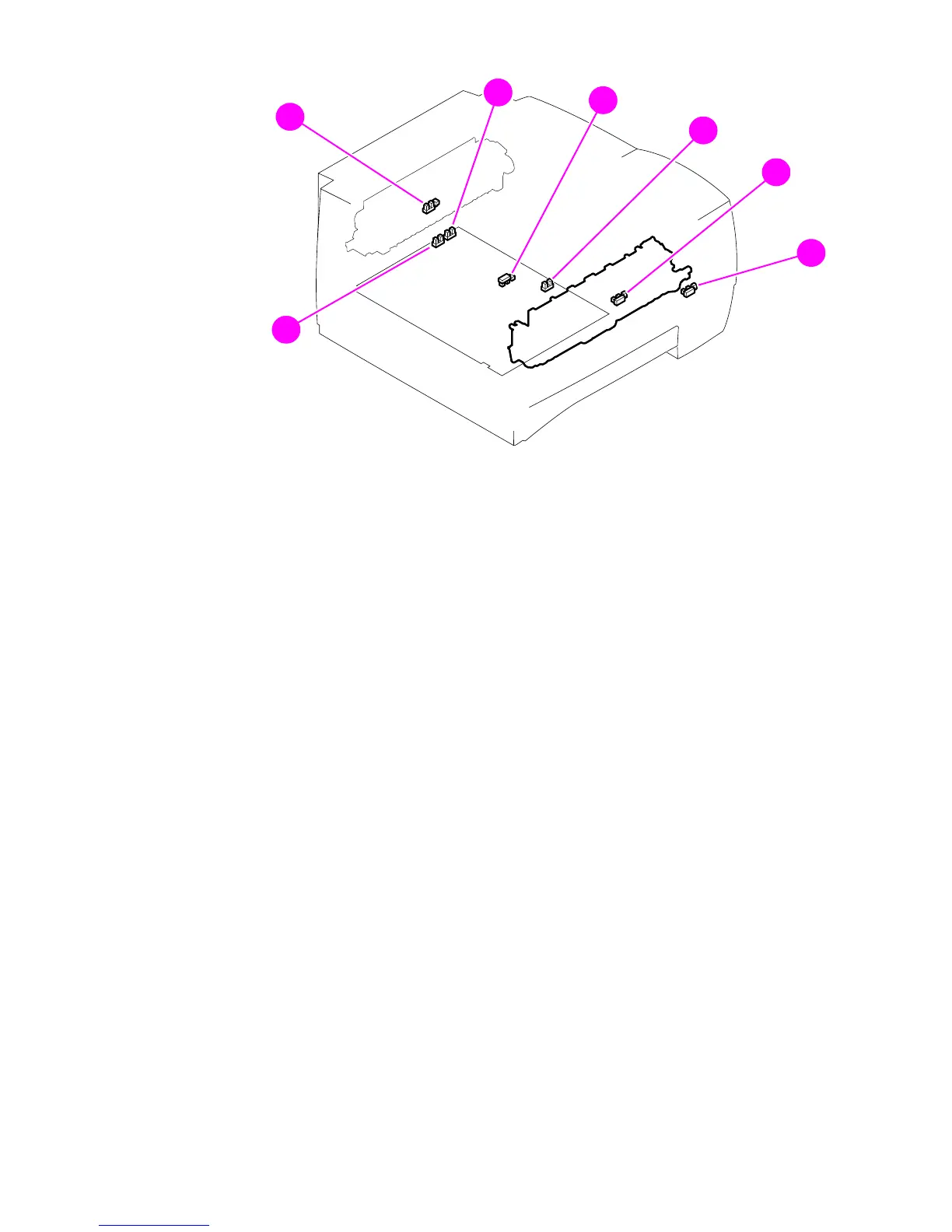

Figure 114. Locations of sensors
1 Rear output bin sensor (PS502)
2 Delivery sensor (PS2301)
3 Reversed media sensor (PS501)
4 Top-of-page sensor (PS2305)
5 Automatic duplexer pickup sensor (PS503)
6 Tray 2 media sensor (PS1305)
7 Tray 1 media sensor (PS3908)
2
2
2
2
2
2
2
1
2
3
4
5
6
7
