Separating the Engine Module from the Paper Feed Module 6-43

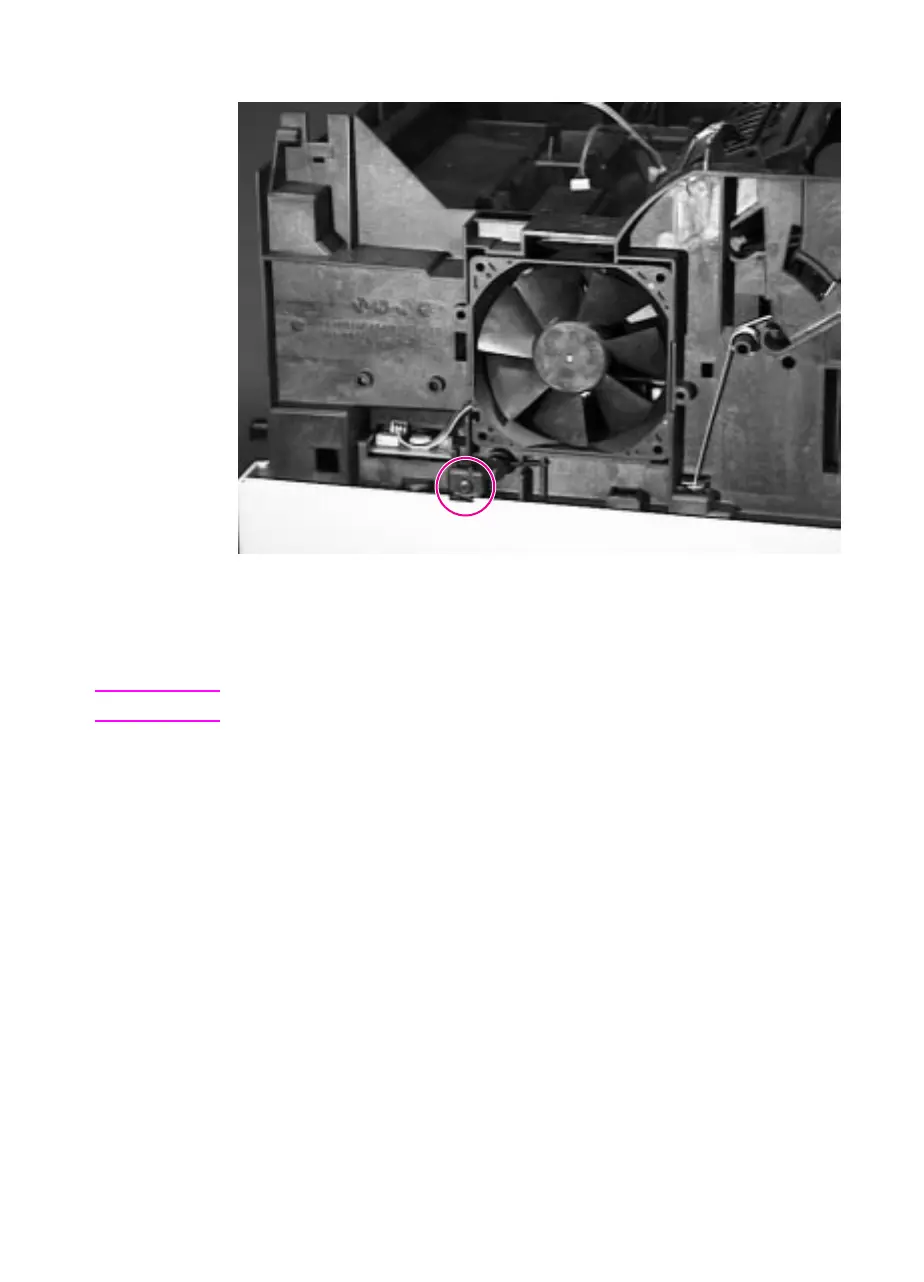

Figure 6-40 Separating the Engine from the Paper Feed Module
3 Remove the single black, self-tapping screw from the left side of
the printer, below the Fan.
CAUTION Lift the Engine carefully, being sure that all cables are disconnected.
4 Lift the Engine away from the Paper Feed Module.
