198 Removing and replacing parts Q2431-90912
Registration assembly
1. Remove the main drive assembly. See “Main drive assembly” on page 186.
2. Remove one e-clip retainer (callout 1) and one screw (callout 1). Remove the registration
roller drive gear (callout 2).

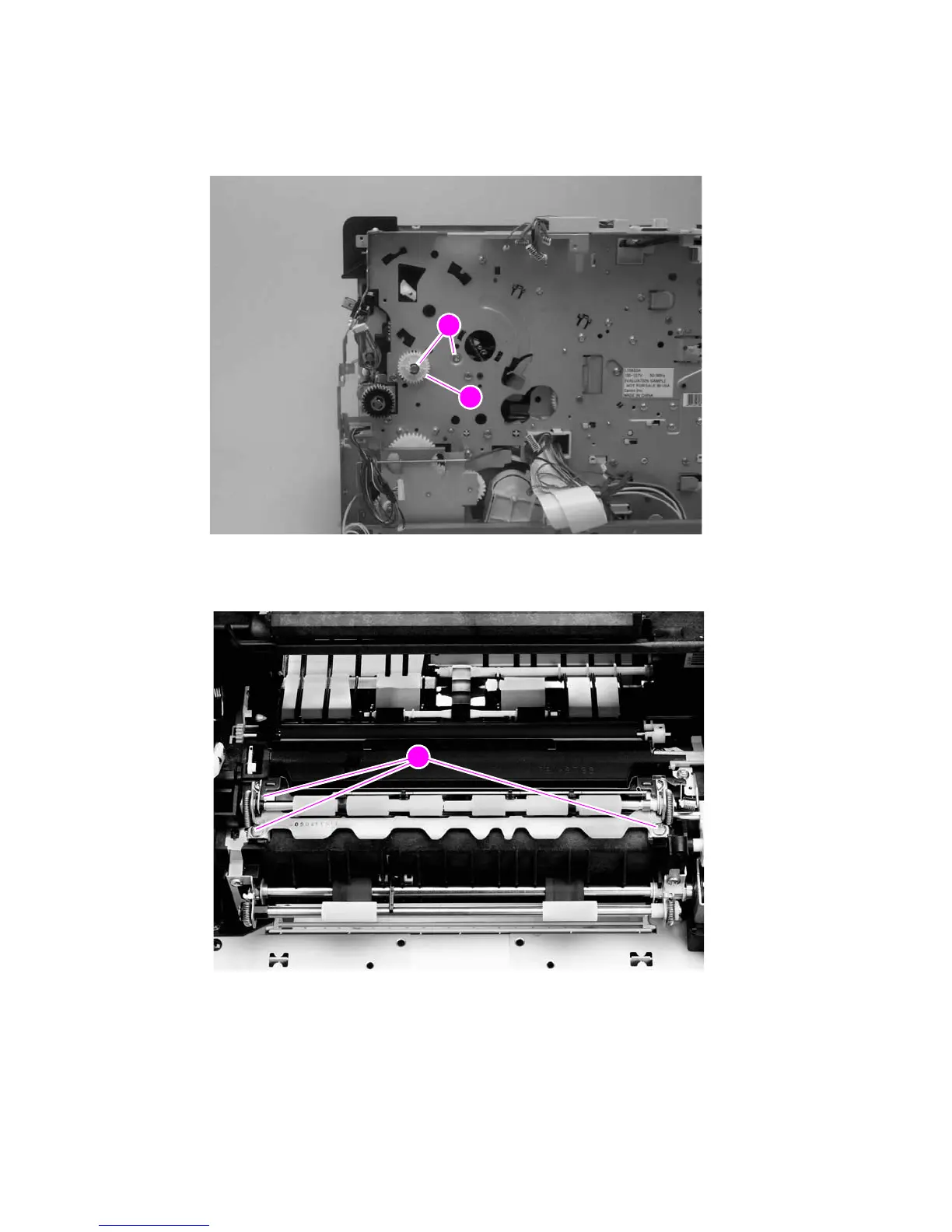

Figure 154. Registration assembly (1 of 3)
3. Remove three screws (callout 3).
Figure 155. Registration assembly (2 of 3)
1
22
1
33
