HP LaserJet 6P

Removing the Left Side Cover
1.
Disconnect all I/O cables.
2.
Press the Top Cover Release button on the right side of the
printer, and open the top cover.
3.
Press the removable side panel as shown in Figure 17.
4.
Slide the cover forward and pull straight away from the side of
the printer.

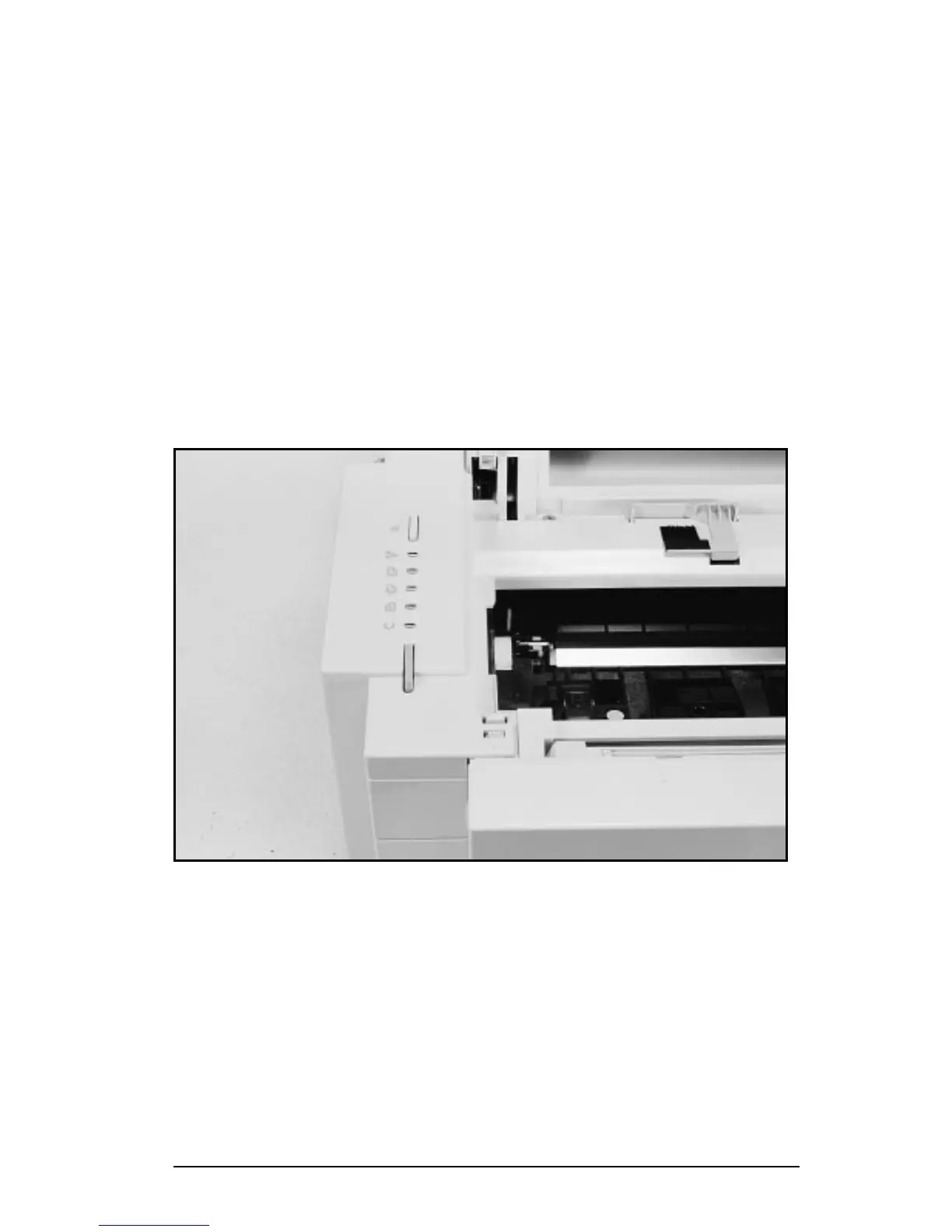

Figure 17 Left Side Cover Release Latch (5P/5MP shown)
HP LaserJet 5P/5MP, 6P/6MP Printer Service Supplement
Removal and Replacement
45
