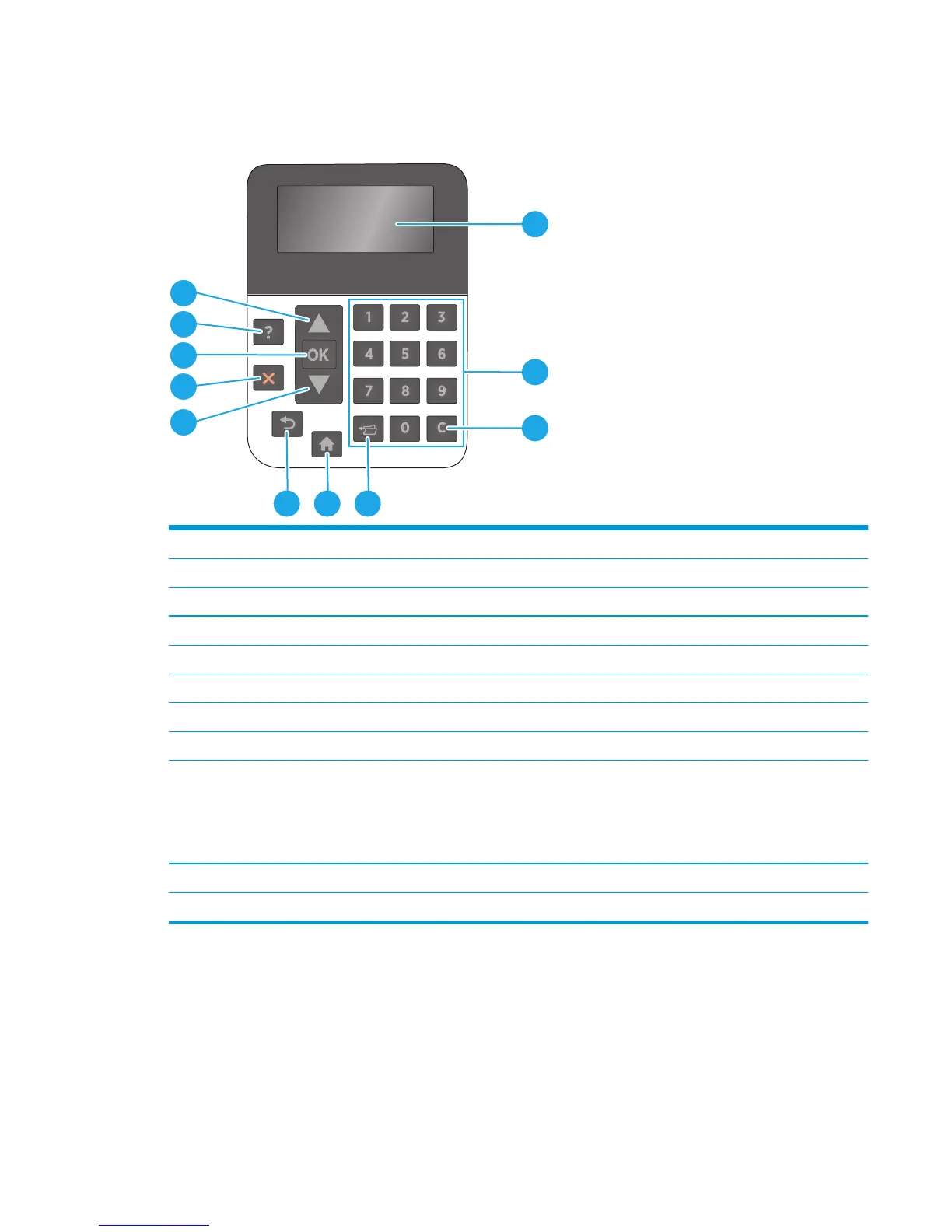

Control-panel view (4-line control panel, n and dn models only)
Use the control panel to obtain product and job status information and to configure the product.
1
2
7
8
9
10
11
3
456
1 Control-panel display Shows status information, menus, help information, and error messages
2 Numeric keypad Enter numeric values
3 Clear button Returns values to their defaults and closes the help screen
4 Folder button Provides quick access to the Retrieve Job menu
5 Home button Opens and closes the menus
6 Back button Backs up one level in the menu tree or backs up one numeric entry
7 Down arrow Navigates to the next item in the list, or decreases the value of numeric items
8 Stop button Cancels the current print job and clears the pages from the product
9 OK button
●
Saves the selected value for an item
●
Performs the action that is associated with the item that is highlighted on the control-panel
display
●
Clears an error condition when the condition is clearable
10 Help button Provides information about the message on the control-panel display
11 Up arrow Navigates to the previous item in the list, or increases the value of numeric items
ENWW Product views 5
