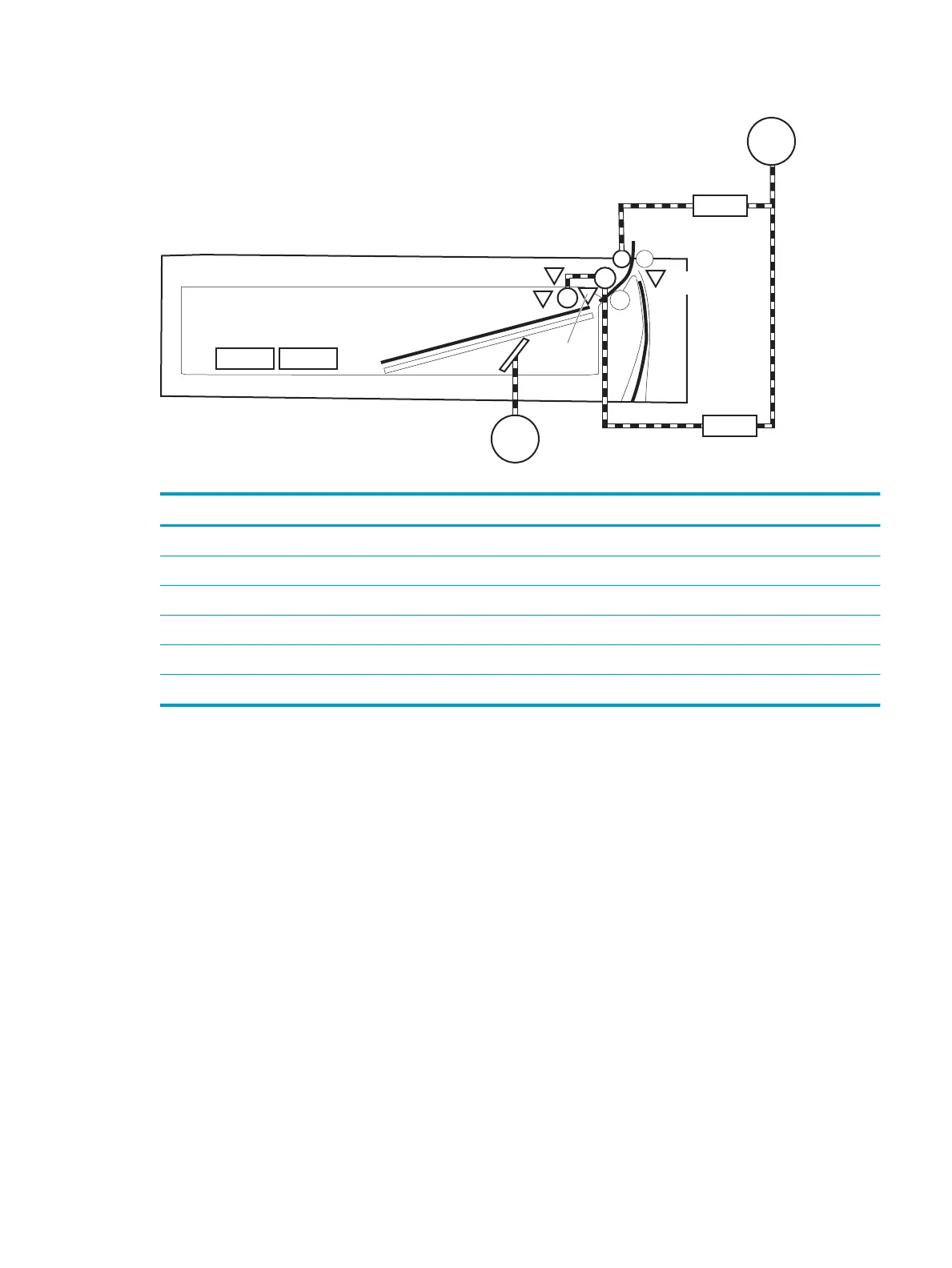

Figure 2-136 1x550-sheet paper feeder, electrical components block diagram
PS900
PS3601
PS3602
M2
CL3602
CL3601
PS3603
M3601
SW3601 SW3602
Table 2-79 1x550-sheet paper feeder, electrical components block diagram
Item Description Item Description
M2 Drum motor SW3603 PF Door switch
M3601 PF Lifter motor PS3601 PF Feed sensor
CL3601 PF pickup clutch PS3602 PF Media out sensor
CL3602 PF Feed clutch PS3603 PF Media surface sensor
SW3601 PF Media size switch 1 PS900 PF Retard roller rotation sensor
SW3602 PF Media size switch 2
1
Located in the printer.
2
1x500-sheet paper feeder only.
ENWW Solve paper handling problems 301
