16
Connector repair
This procedure includes HDMI, DisplayPort, USB Type-C, USB B TYPE, Audio and USB3.0 connectors.

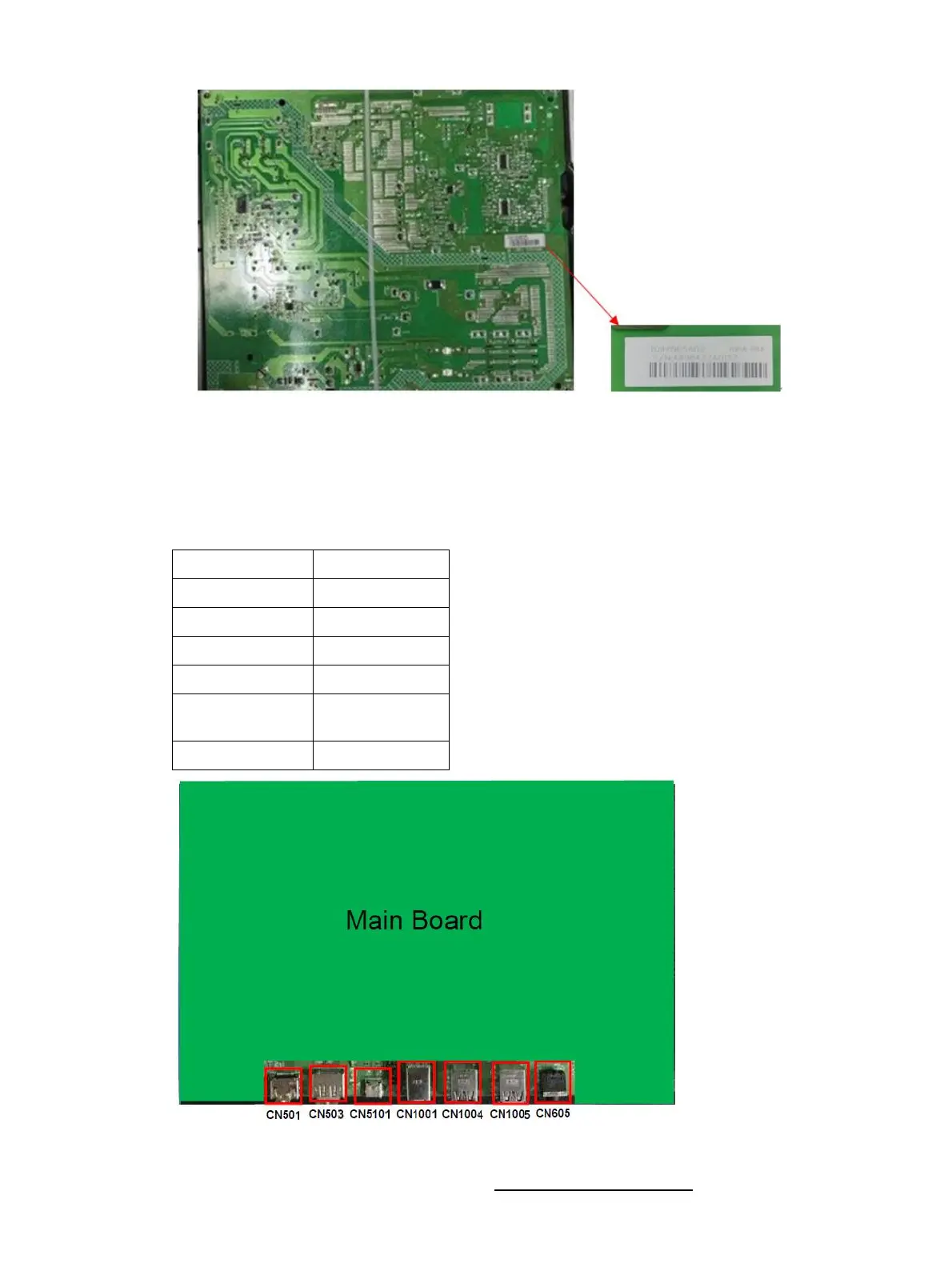

The connectors are on the main board (board part number CBPCPD9H1Q1)
The connector’s identifiers are as follows:
Connector
Location
HDMI
CN501
DisplayPort
CN503
USB Type-C
CN5101
USB B TYPE
CN1001
USB 3.0
CN1004
CN1005
Audio
CN605
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
