Component identification 11
Item Description
27
Rear USB connectors (4)
System maintenance switch
Position Default Function
1
Off Off = iLO 3 security is enabled
On = iLO 3 security is disabled
2
Off Off = System configuration can be
changed
On = System configuration is locked
3
— Reserved
4
— Reserved
5
Off Off = Power-on password is enabled
On = Power-on password is disabled
6
Off Off = No function
On = Clear NVRAM
7
— Reserved
8
— Reserved
9
— Reserved
10
— Reserved
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.

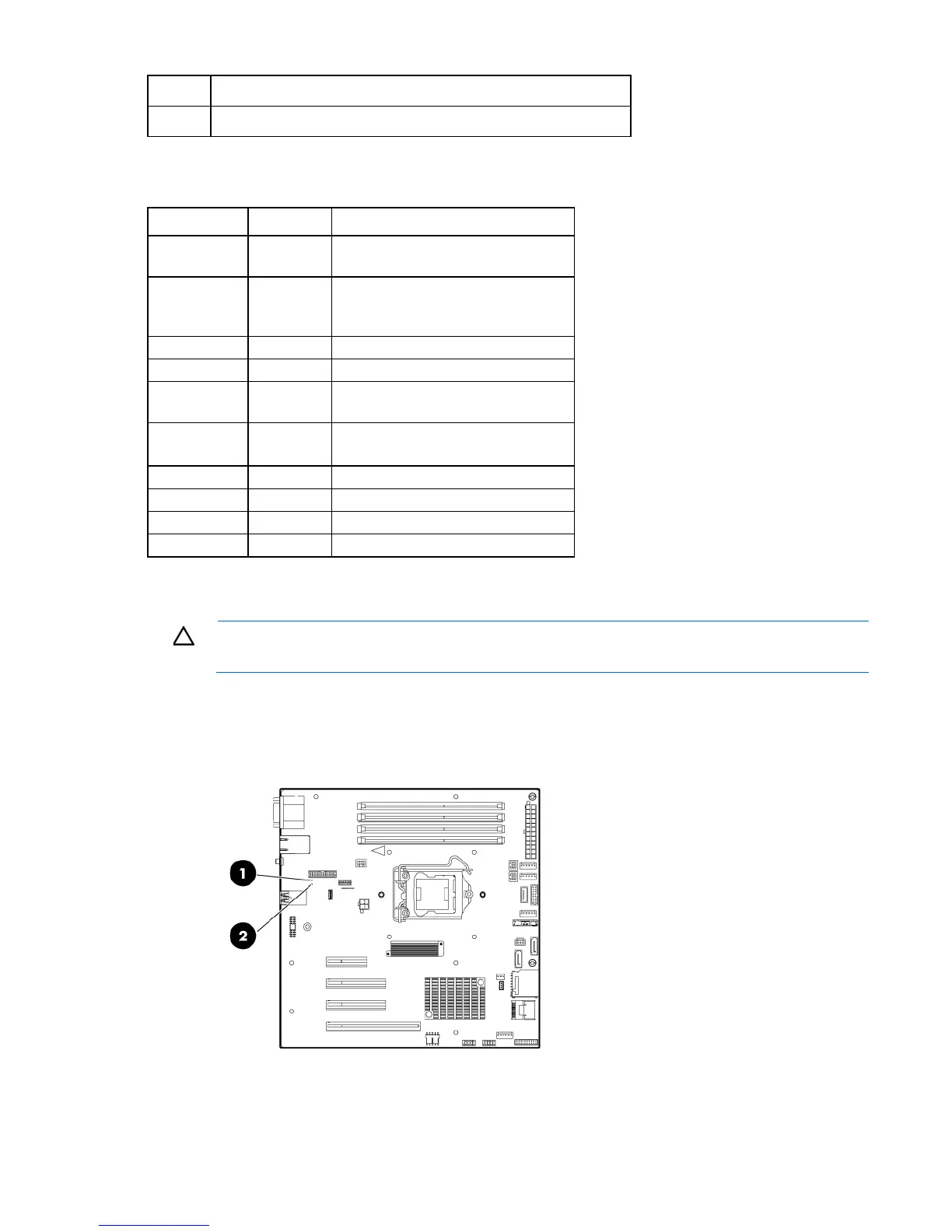

System board LEDs
