Hardware options installation 53
6.

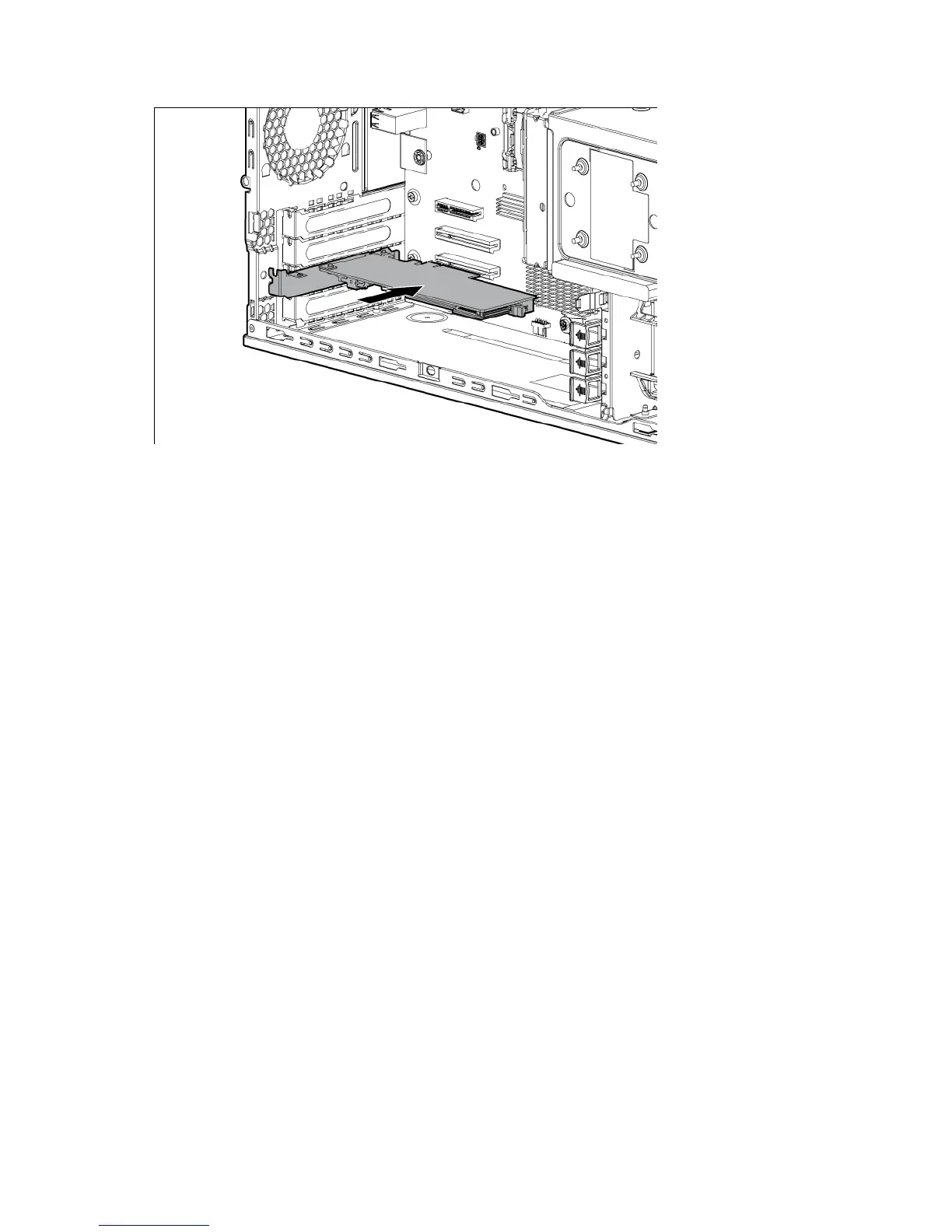

Install the expansion board.
7. Connect any required internal or external cables to the expansion board. See the documentation that
ships with the expansion board.
8. Install the full-length expansion board retainer, if any full-length expansion boards were removed
("Installing the full-length expansion board retainer" on page 23).
9. Install the air baffle ("Installing the air baffle" on page 22).
10. Install the access panel ("Installing the access panel" on page 21).
Hard drive LED cable option
The SAS hard drive LED cable provides LED functionality for non-hot-plug SAS hard drives when an optional
SAS controller and an optional SAS controller cable are installed.
1. Power down the server (on page 19).
2. Remove the bezel ("Removing the front bezel" on page 19).
3. Remove the access panel ("Removing the access panel" on page 20).
4. Install the optional SAS controller. For more information, see "Expansion board options."
5. Connect the SAS hard drive LED cable to the system board (pin J40) and to the SAS controller.
6. Install the access panel ("Installing the access panel" on page 21).
7. Install the bezel ("Installing the front bezel" on page 20).
8. Power up the server (on page 19, "Powering up and configuring the server" on page 29).
HP Trusted Platform Module option
Use these instructions to install and enable a TPM on a supported server. This procedure includes three
sections:
1. Installing the Trusted Platform Module board.
2. Retaining the recovery key/password (on page 55).
