Hardware options installation 55
6.

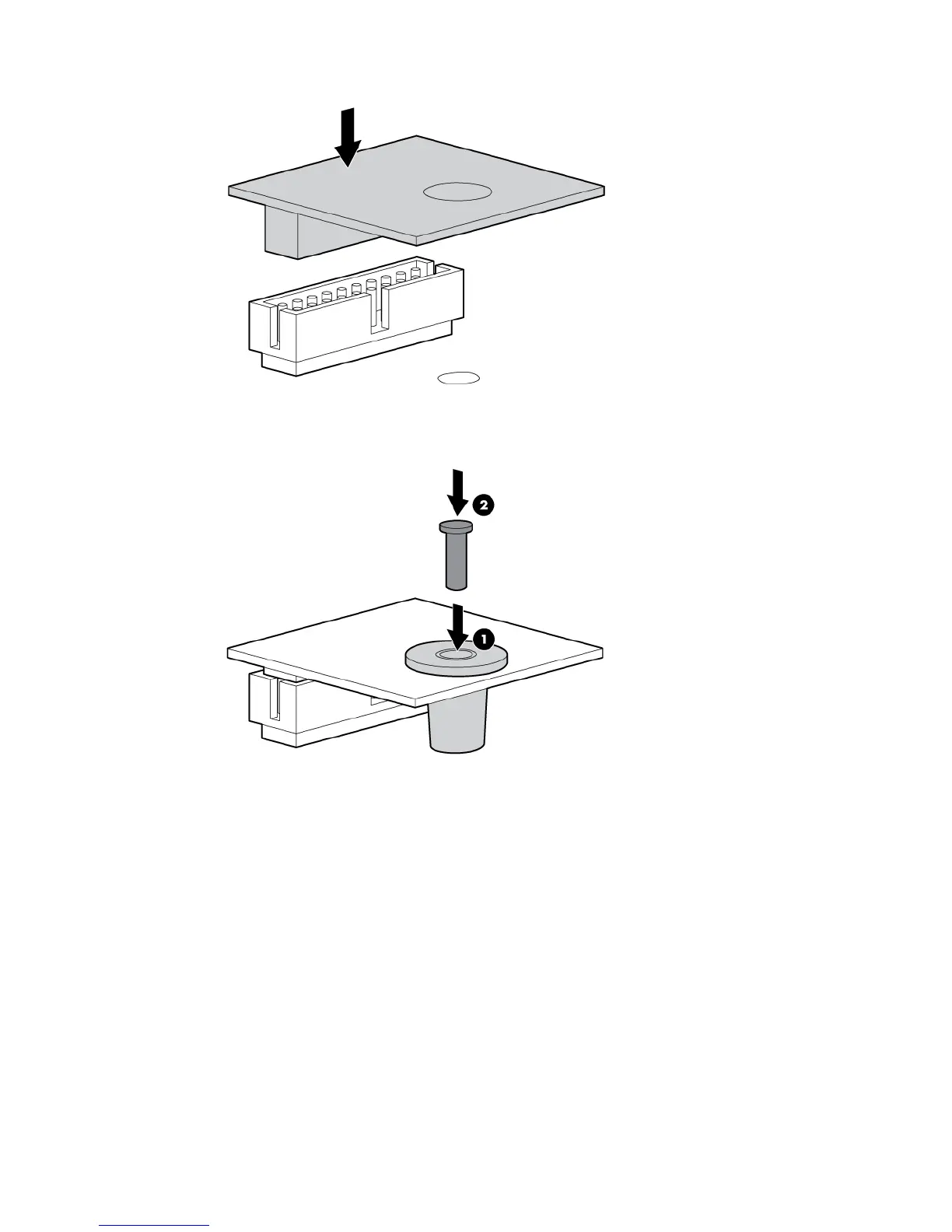

Install the TPM board. Press down on the connector to seat the board.
7. Install the TPM security rivet by pressing the rivet firmly into the system board.
8. Install the system fan.
9. Install the access panel ("Installing the access panel" on page 21).
10. Install the bezel ("Installing the front bezel" on page 20).
11. Power up the server (on page 19, "Powering up and configuring the server" on page 29).
Retaining the recovery key/password
The recovery key/password is generated during BitLocker™ setup, and can be saved and printed after
BitLocker™ is enabled. When using BitLocker™, always retain the recovery key/password. The recovery
key/password is required to enter Recovery Mode after BitLocker™ detects a possible compromise of system
integrity.
To help ensure maximum security, observe the following guidelines when retaining the recovery
key/password:
• Always store the recovery key/password in multiple locations.
