21. Dis-fasten hinge bkt screw *6
22. Remove LVDS FPC/ Backlight module / Hinge BKT*2PCS /Camera module
23. Remove Antenna module and Backlight DB
24. END
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the
product that require selective treatment (with descriptions and arrows identifying locations).

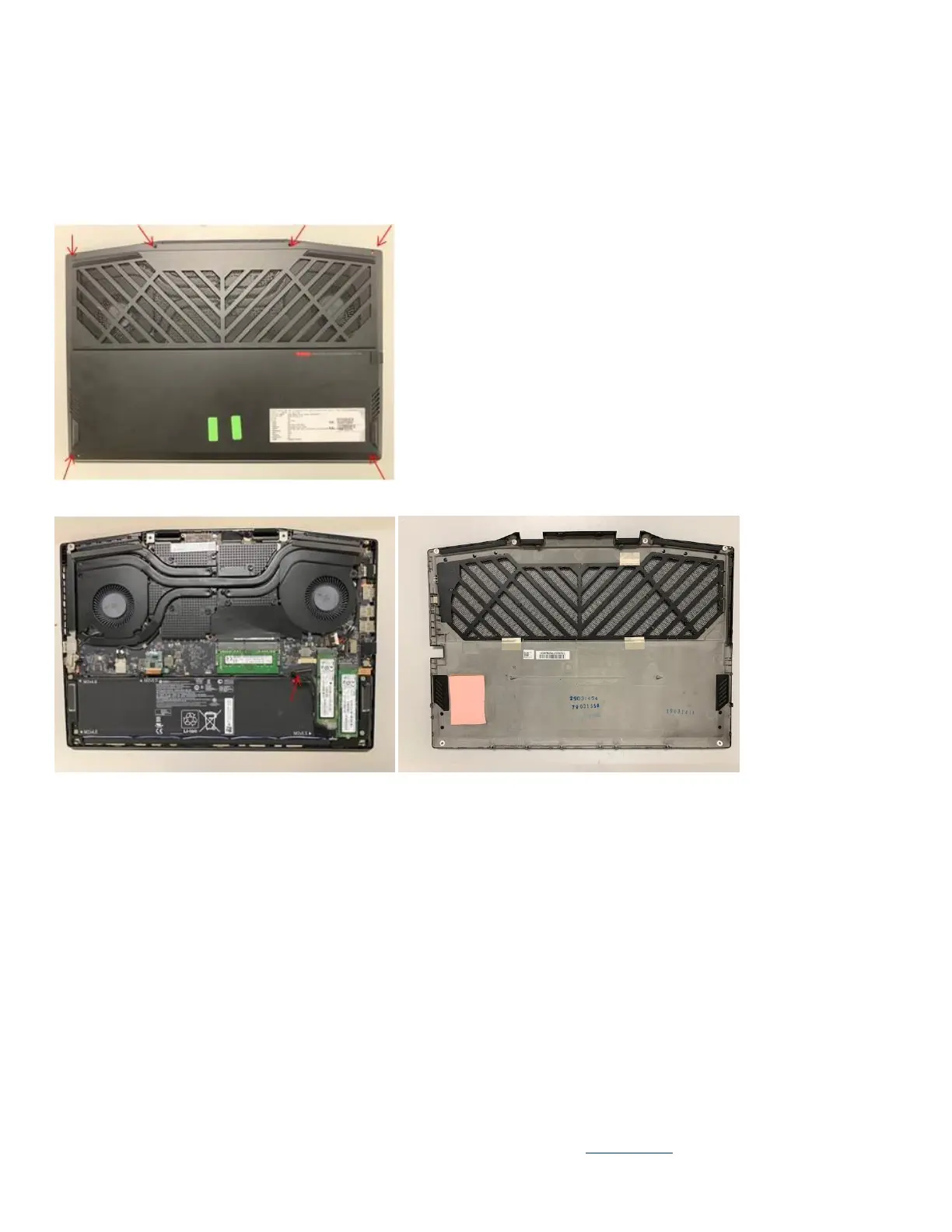

3.21 Dis-fasten BASE Screw*6
3.22 Remove BASE and remove Battery connector
3.23 Dis-fasten SSD screw*2
To Next Page
