18 Advanced Setup Guide (features vary by model)
Software configuration is different for each connector type, as noted in the instructions.
When installing cables, use the sound connectors that match your computer model, as
shown in the installation procedure steps.
NOTE:
Type 3 has three connectors.
Type 6 has six connectors.
Type S has audio card.

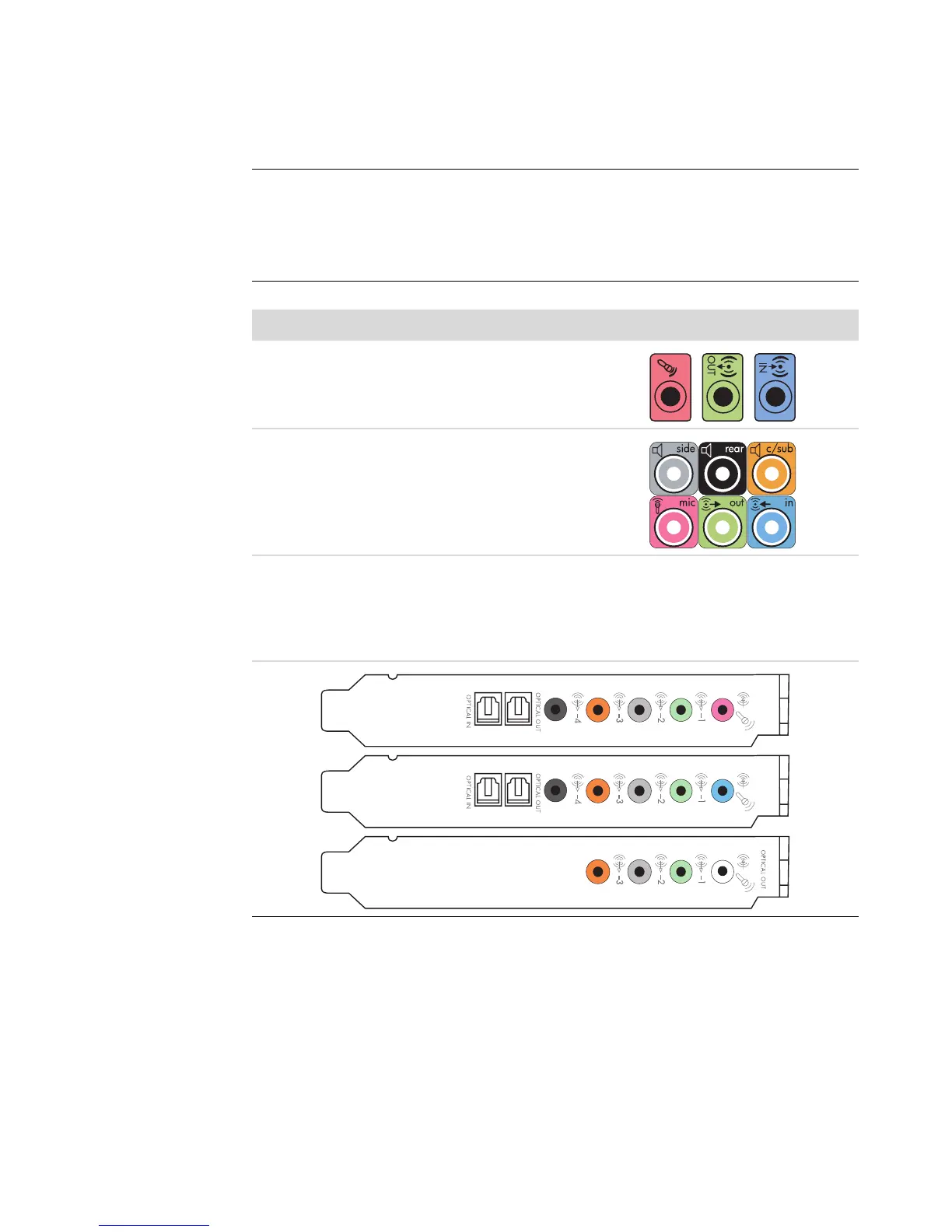

Sound connector Illustration Type
Three
connectors
Your computer model may include
three sound connectors. You can
connect up to a 5.1 audio system to the
computer.
3
Six
connectors
Your computer model may include six
sound connectors on the back of your
computer. You can connect up to a
7.1 audio system to the computer.
6
Audio card
connector
Your computer may include a audio
card. You can connect up to a
5.1 audio system (7.1 audio system for
select models) or digital speakers to the
audio card on the computer.
See the following
illustrations.
S
