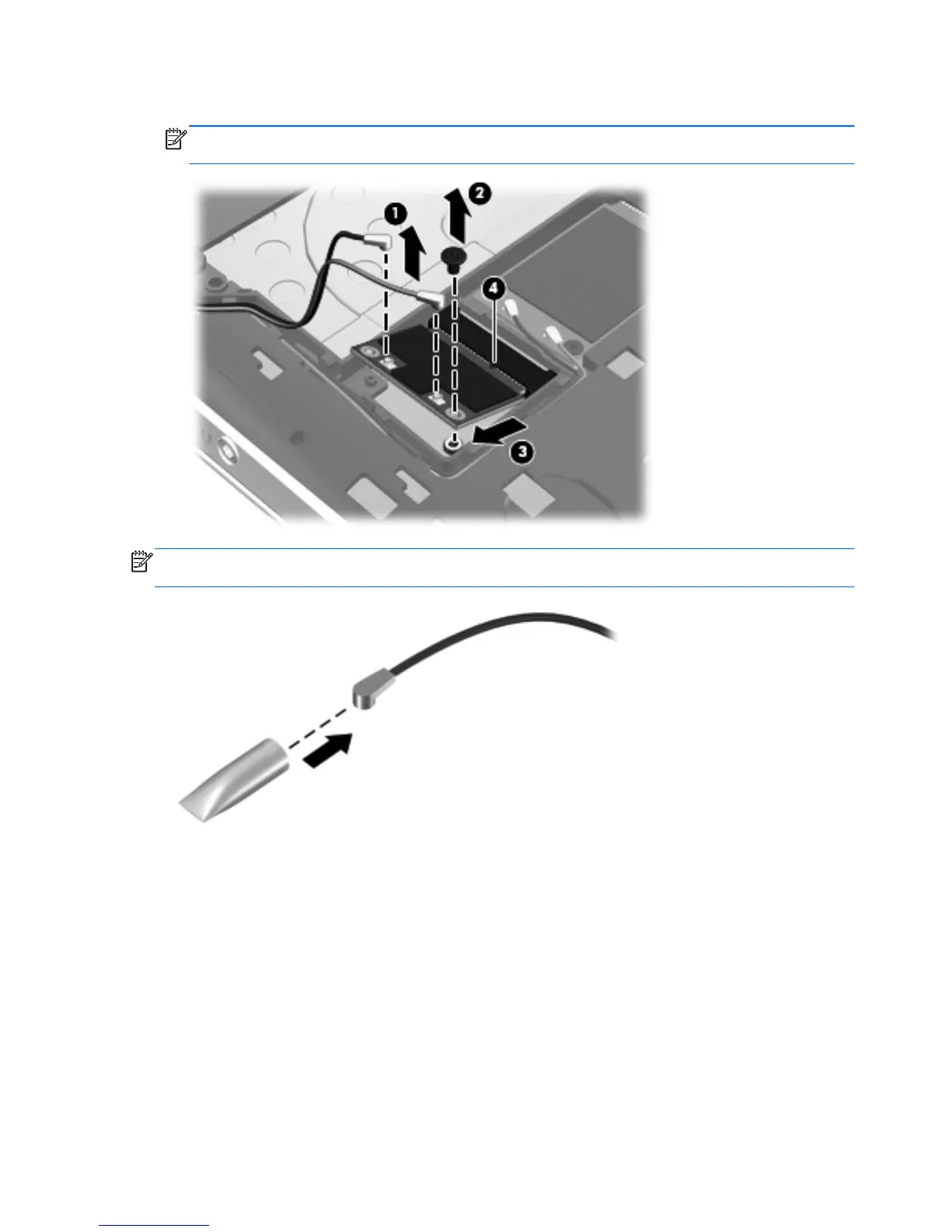

5. Remove the WLAN module by pulling the module away from the slot at an angle (3).

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the

memory module slot.

NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the

protective sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

50 Chapter 4 Removal and replacement procedures
