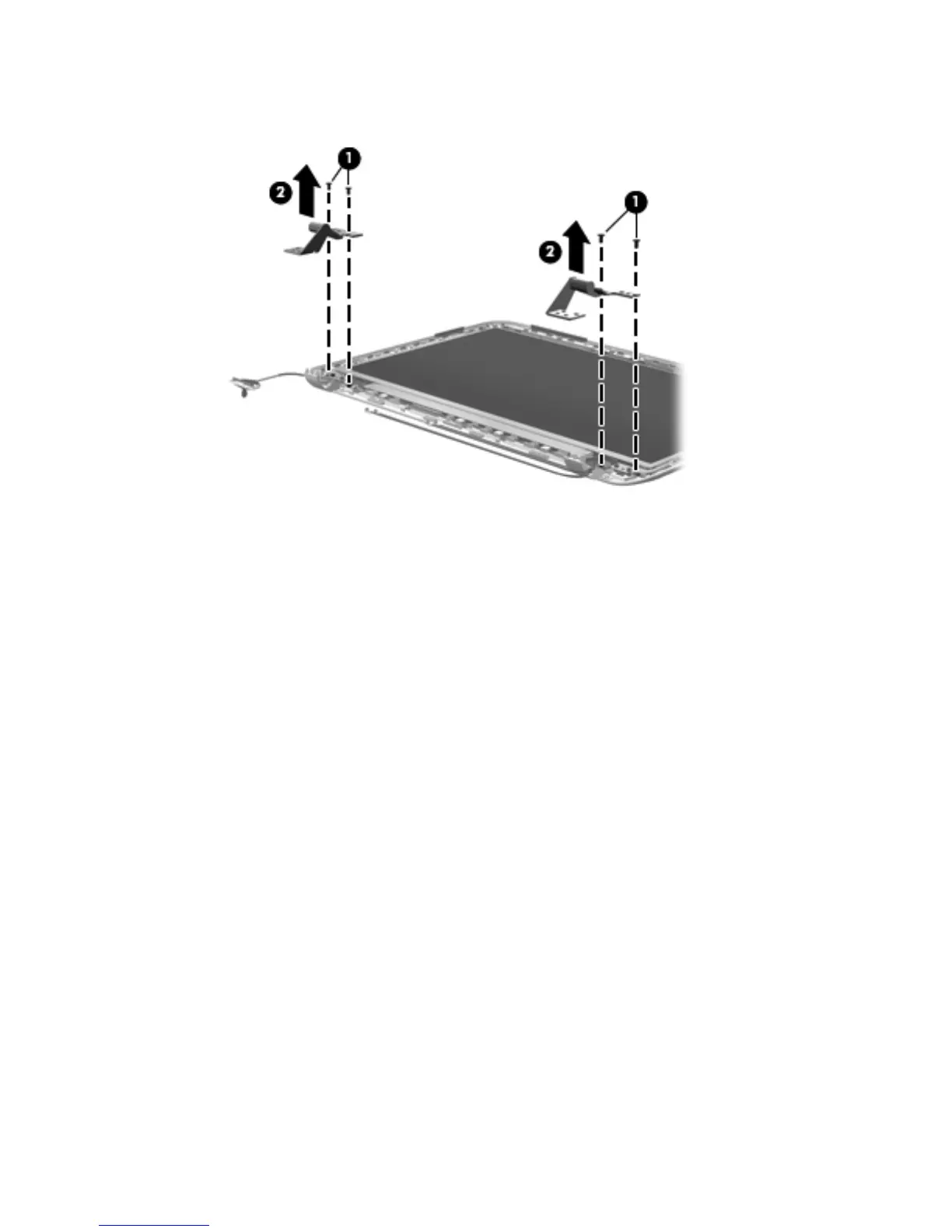

e. Remove the hinges (2). The hinges are available in the Display Hinge Kit, spare part

number 659499-001.

7. If it is necessary to replace the display panel cable:

a. Remove the display assembly.

b. Remove the display bezel.

c. Remove the display panel.

d. Remove the left display hinge.

e. Release the webcamera cable (1) from the display enclosure. (The webcamera cable is

attached to the display enclosure with double-sided tape.)

f. Release the display panel cable from the clip (2) built into the display enclosure near the

left display hinge area.

66 Chapter 4 Removal and replacement procedures
