HP Pavilion DV5-1002 Maintenance And Service Guide

Removal and replacement procedures
Maintenance and Service Guide 4–21

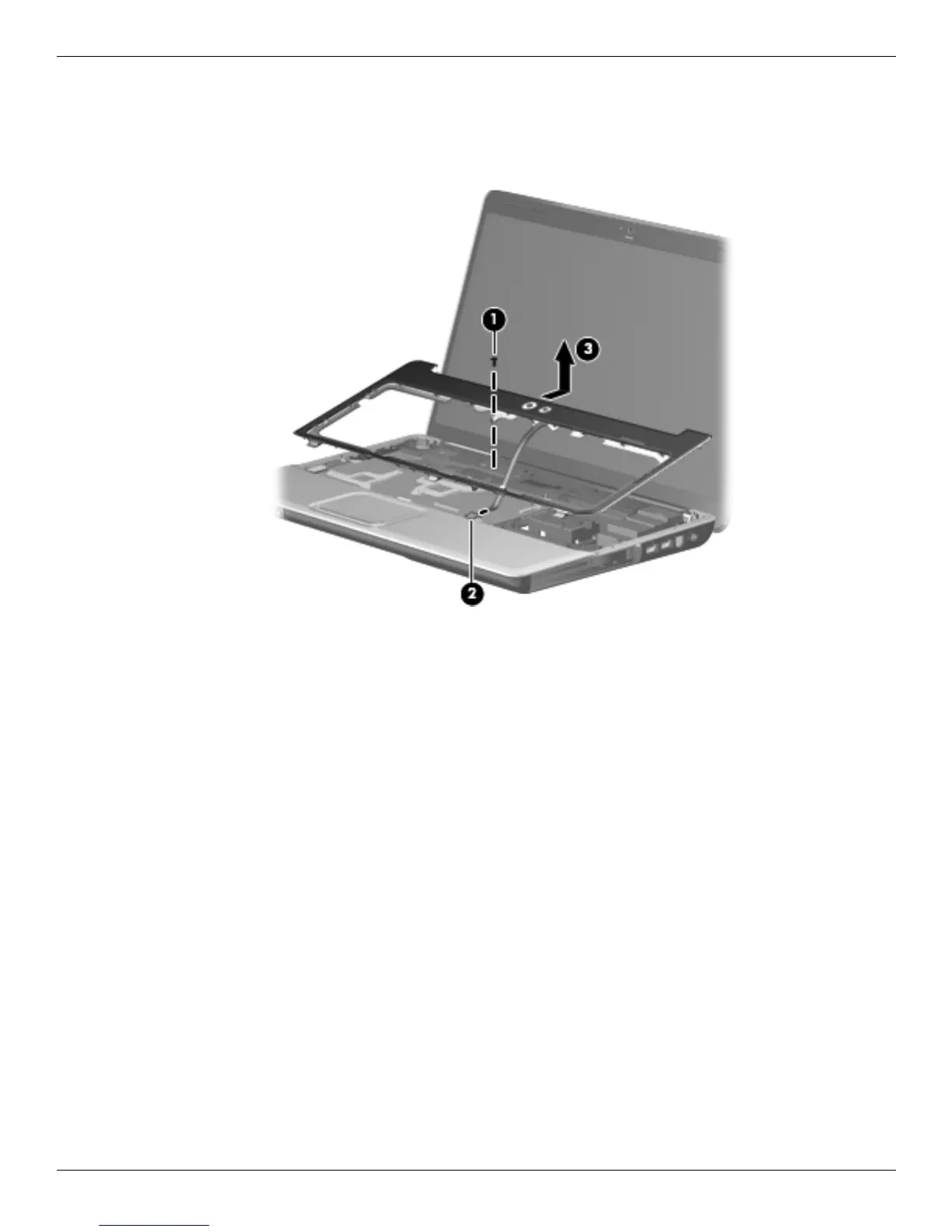

4. Remove the Phillips PM2.5×6.0 screw 1 that secures the switch cover to the computer.
5. Release the ZIF connector cable 2 .
6. Slide the switch cover 3 toward the display panel until it disengages from the top cover, and then lift up to
remove the switch cover.
Reverse this procedure to install the switch cover.

HP Pavilion DV5-1002 Specifications

General

Brand	HP
Model	Pavilion DV5-1002
Category	Laptop
Language	English
