Removal and replacement procedures
Maintenance and Service Guide 4–27

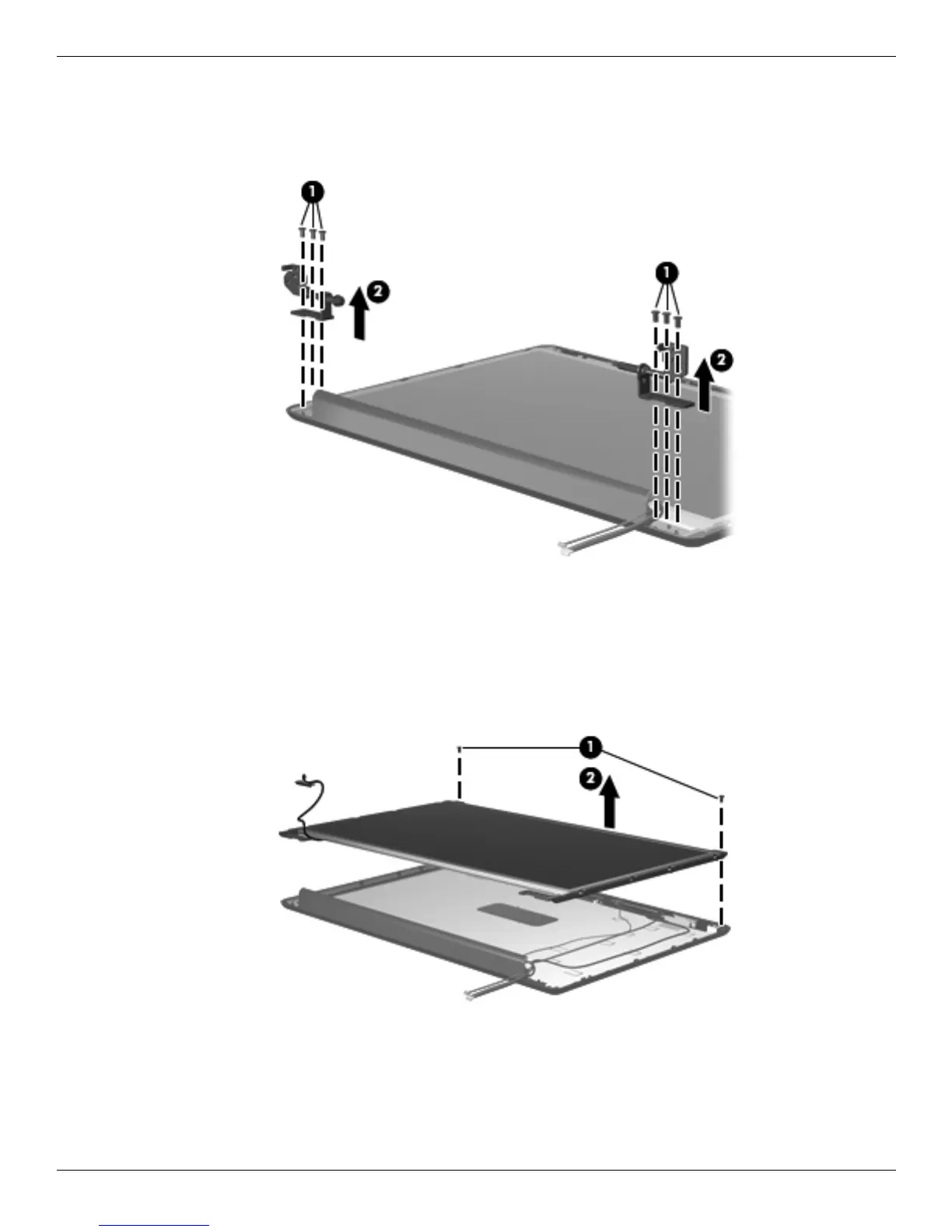

12. If it is necessary to replace the display hinges, remove the 3 Phillips PM2.5×6.0 screws 1 that secure each
hinge to the display enclosure.
13. Remove the display hinges 2. The display hinges are available in the Display Hinge Kit, spare part number
530993-001.
14. If it is necessary to replace the display panel, remove the 2 Phillips PM2.5×6.0 screws 1 that secure the display
panel to the display enclosure.
15. Remove the display panel 2 from the display enclosure.
The following display panels are available:
❏ For use with 16-inch display, spare part number 531216-001
❏ For use with 15.6-inch display, spare part number 517842-001.
