Remove the power button board:
1. Turn the top cover upside down, with the front toward you.
NOTE: The power button board is secured by a screw that was previously removed when
releasing the speaker.

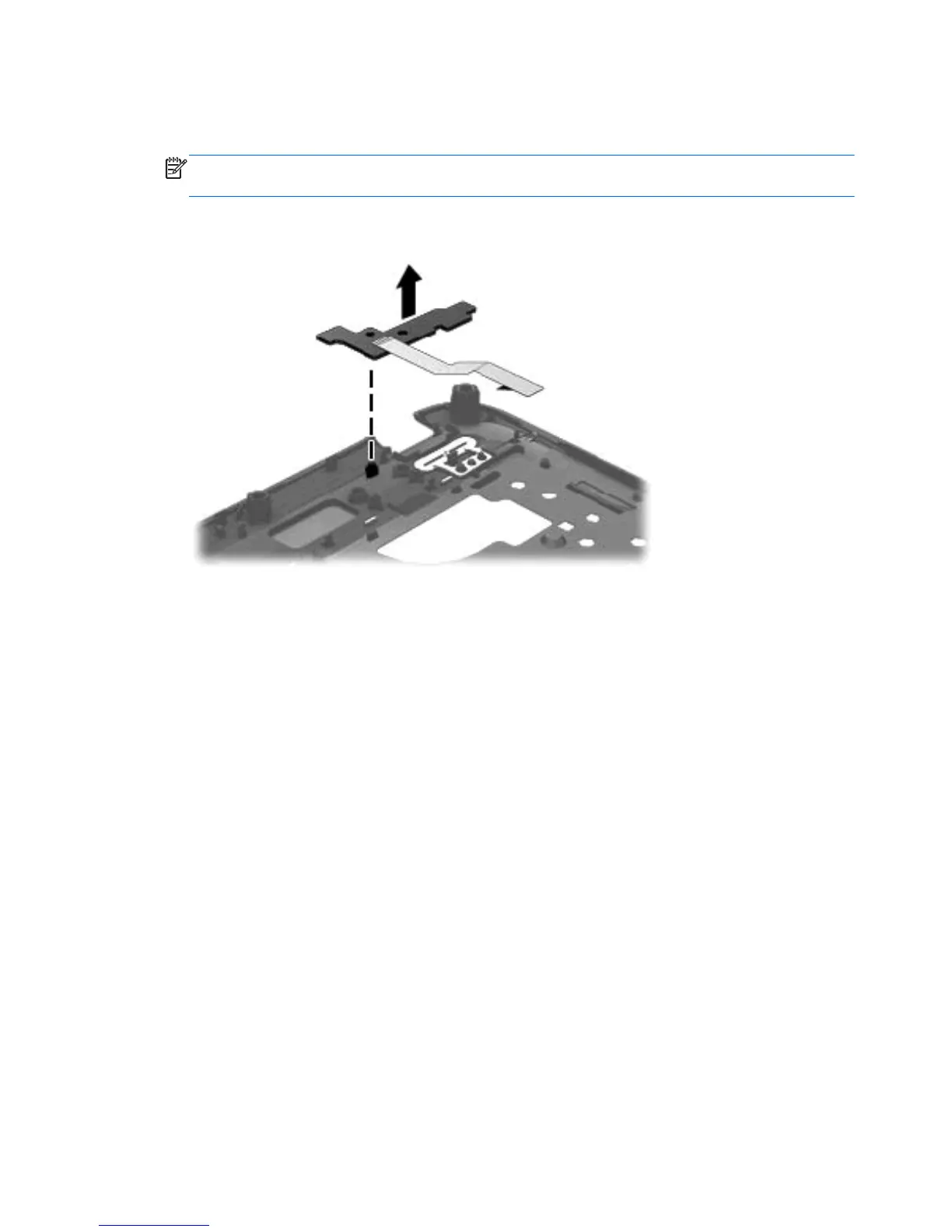

2. Release the tape securing the power button board cable and remove the power button board and
cable.
Reverse this procedure to install the power button board.
62 Chapter 4 Removal and replacement procedures ENWW
