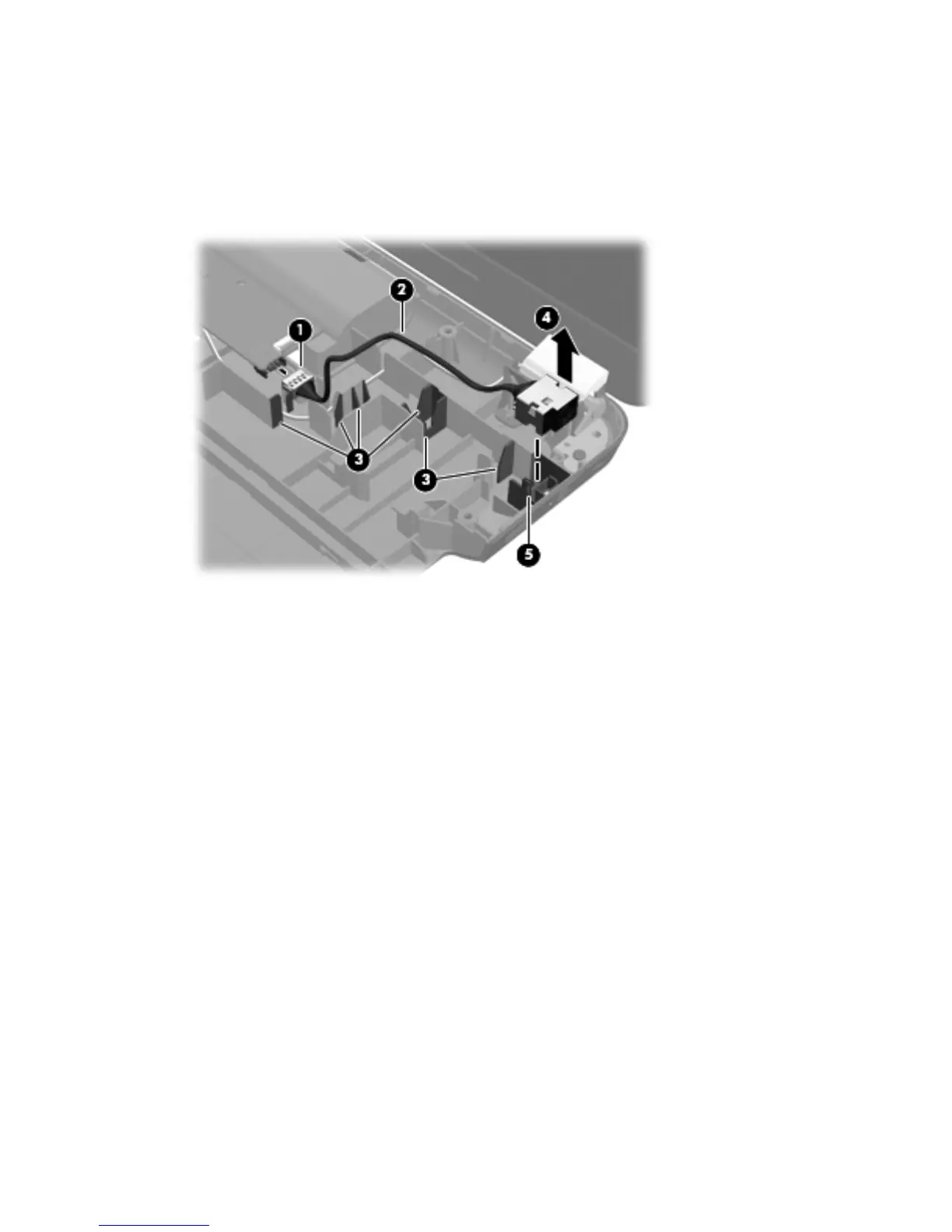

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable (2) from the clips (3) built into the base enclosure.
3.
Remove the power connector (4) from the clip (5) built into the base enclosure.
Reverse this procedure to install the power connector cable.
76 Chapter 4 Removal and replacement procedures
