2.

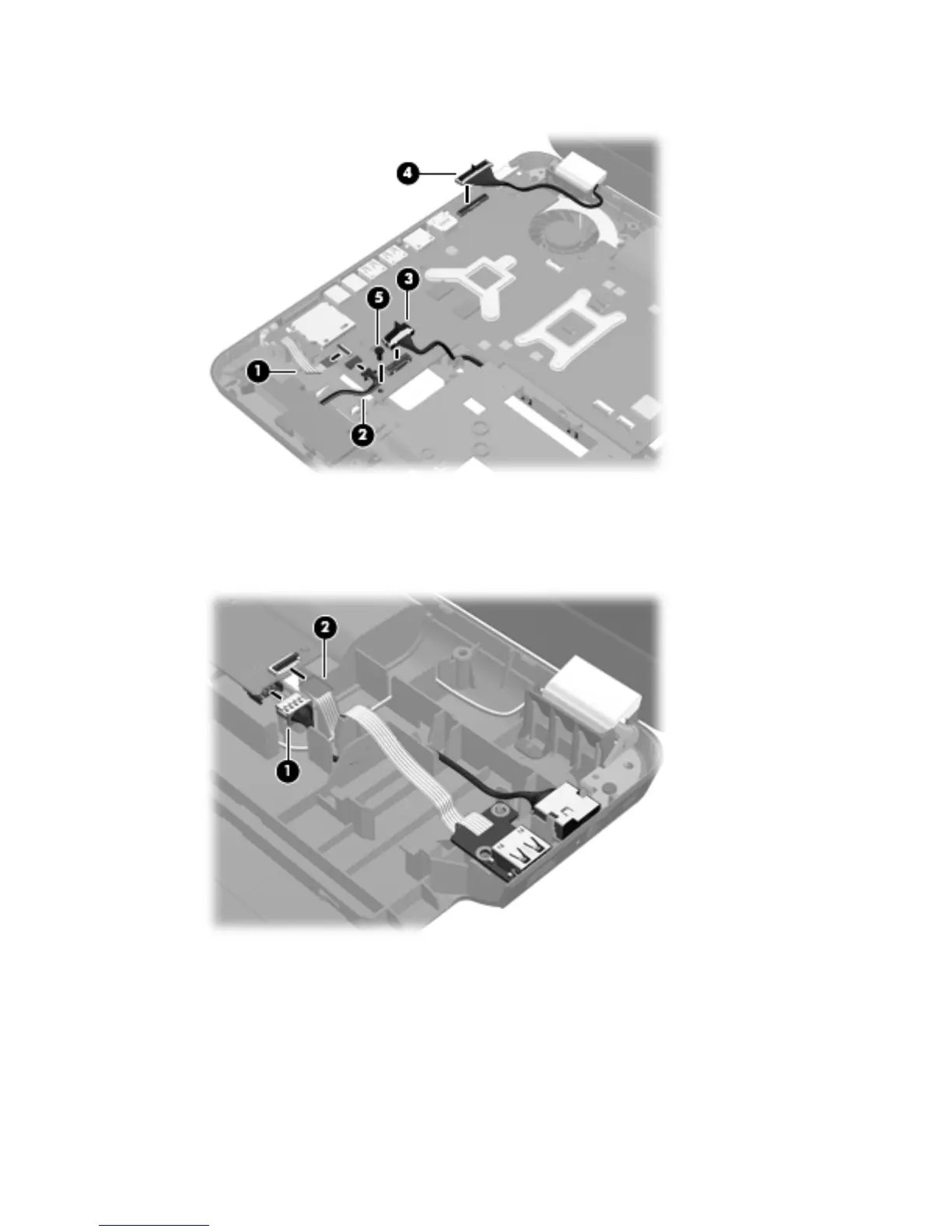

Remove the Philllips PM2.5×7.0 screw (5) that secures the system board to the base enclosure.
3. Disconnect the power connector cable (1) from the system board.
4. Release the ZIF connector to which the USB board cable is attached, and then disconnect the USB
cable (2) from the system board.
5. Lift the right side of the system board (1) until it rests at an angle.
Component replacement procedures
79
