2.

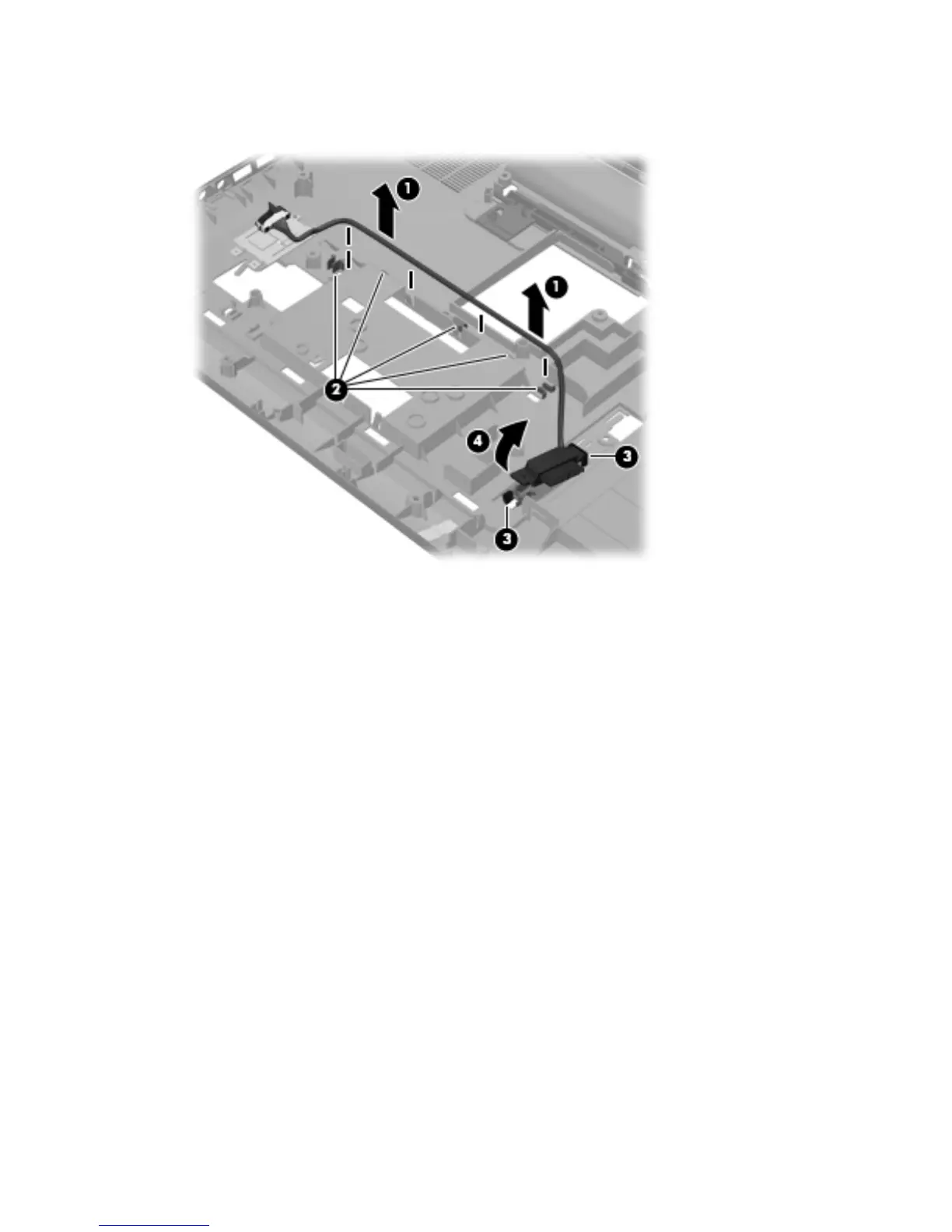

Release the clips (3) built into the base enclosure that secure the optical drive connector, and then
release the connector (4) from the clips.
3. Remove the optical drive connector and cable.
Reverse this procedure to install the optical drive connector and cable.
82 Chapter 4 Removal and replacement procedures
