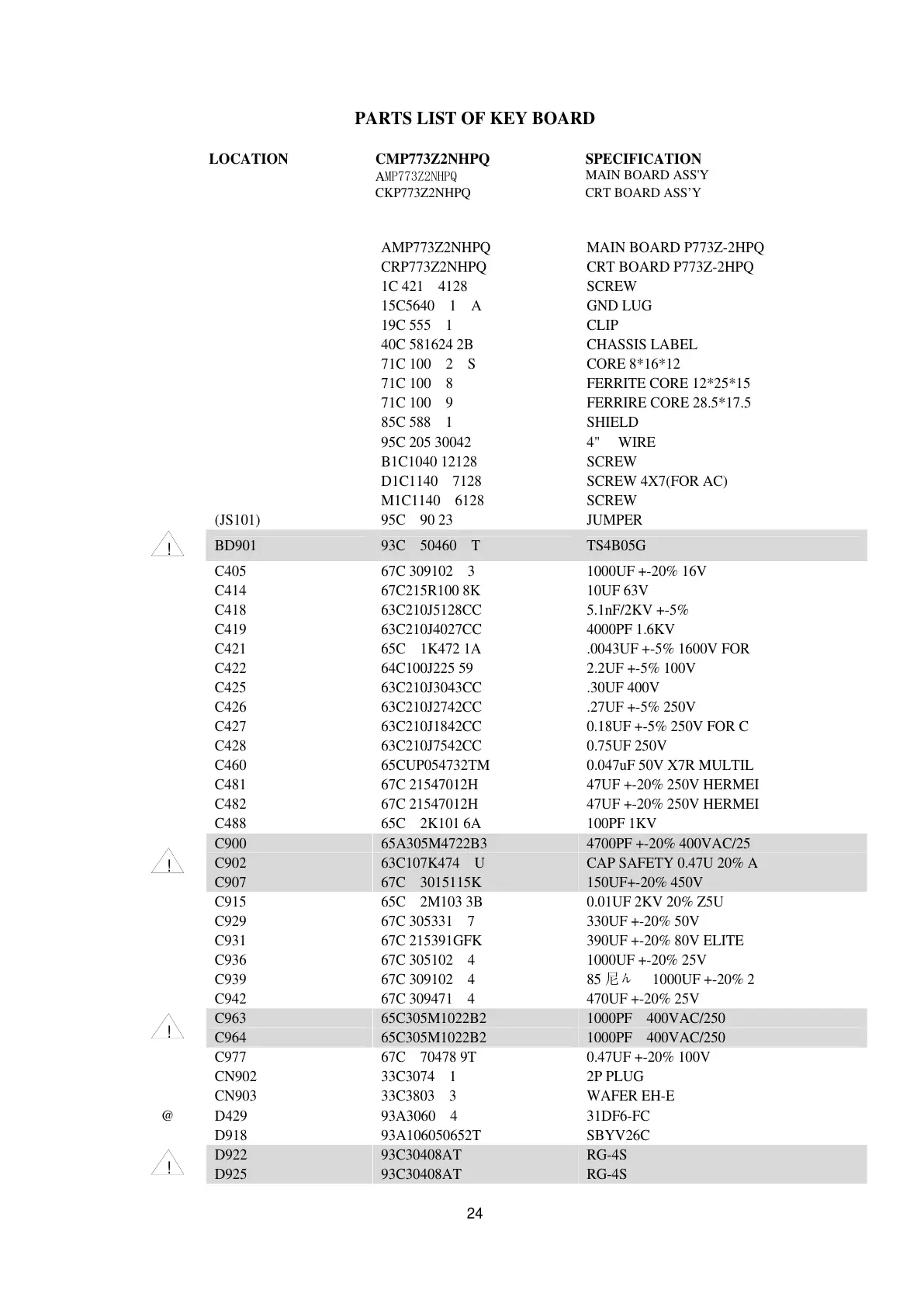

PARTS LIST OF KEY BOARD
LOCATION CMP773Z2NHPQ SPECIFICATION
AMP773Z2NHPQ
MAIN BOARD ASS'Y
CKP773Z2NHPQ CRT BOARD ASS’Y
AMP773Z2NHPQ MAIN BOARD P773Z-2HPQ
CRP773Z2NHPQ CRT BOARD P773Z-2HPQ
1C 421 4128 SCREW
15C5640 1 A GND LUG
19C 555 1 CLIP
40C 581624 2B CHASSIS LABEL
71C 100 2 S CORE 8*16*12
71C 100 8 FERRITE CORE 12*25*15
71C 100 9 FERRIRE CORE 28.5*17.5
85C 588 1 SHIELD
95C 205 30042
4" WIRE
B1C1040 12128 SCREW
D1C1140 7128 SCREW 4X7(FOR AC)
M1C1140 6128 SCREW
(JS101) 95C 90 23 JUMPER
!
BD901 93C 50460 T TS4B05G
C405 67C 309102 3 1000UF +-20% 16V
C414 67C215R100 8K 10UF 63V
C418 63C210J5128CC 5.1nF/2KV +-5%
C419 63C210J4027CC 4000PF 1.6KV
C421 65C 1K472 1A .0043UF +-5% 1600V FOR
C422 64C100J225 59 2.2UF +-5% 100V
C425 63C210J3043CC .30UF 400V
C426 63C210J2742CC .27UF +-5% 250V
C427 63C210J1842CC 0.18UF +-5% 250V FOR C
C428 63C210J7542CC 0.75UF 250V
C460 65CUP054732TM 0.047uF 50V X7R MULTIL
C481 67C 21547012H 47UF +-20% 250V HERMEI
C482 67C 21547012H 47UF +-20% 250V HERMEI
C488 65C 2K101 6A 100PF 1KV
C900 65A305M4722B3 4700PF +-20% 400VAC/25
C902 63C107K474 U CAP SAFETY 0.47U 20% A
!
C907 67C 3015115K 150UF+-20% 450V
C915 65C 2M103 3B 0.01UF 2KV 20% Z5U
C929 67C 305331 7 330UF +-20% 50V
C931 67C 215391GFK 390UF +-20% 80V ELITE
C936 67C 305102 4 1000UF +-20% 25V
C939 67C 309102 4
85 尼ん 1000UF +-20% 2
C942 67C 309471 4 470UF +-20% 25V
C963 65C305M1022B2 1000PF 400VAC/250
!
C964 65C305M1022B2 1000PF 400VAC/250
C977 67C 70478 9T 0.47UF +-20% 100V
CN902 33C3074 1 2P PLUG
CN903 33C3803 3 WAFER EH-E
@ D429 93A3060 4 31DF6-FC
D918 93A106050652T SBYV26C
D922 93C30408AT RG-4S
!
D925 93C30408AT RG-4S
