35

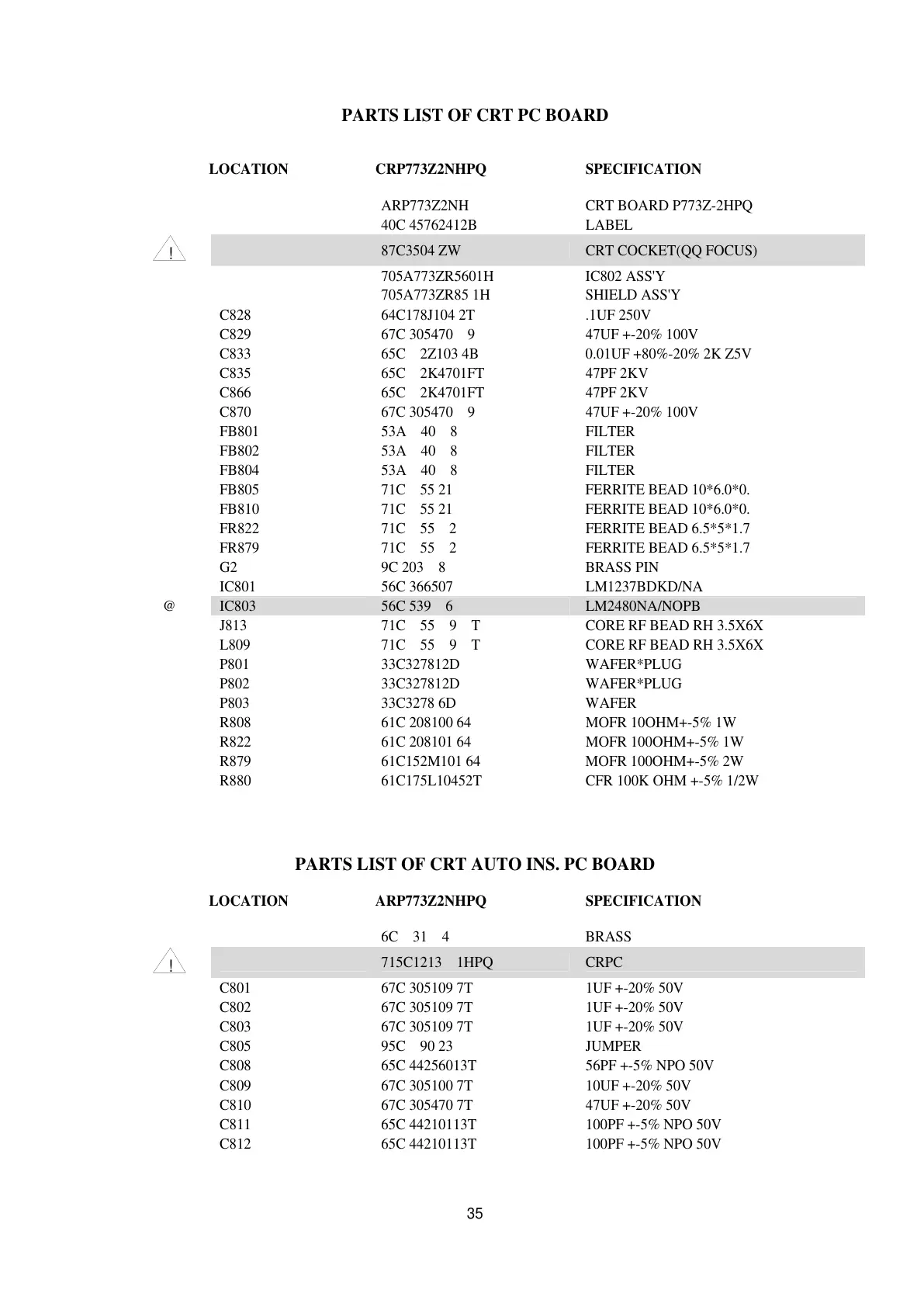

PARTS LIST OF CRT PC BOARD
LOCATION CRP773Z2NHPQ SPECIFICATION
ARP773Z2NH CRT BOARD P773Z-2HPQ
40C 45762412B LABEL
!
87C3504 ZW CRT COCKET(QQ FOCUS)
705A773ZR5601H IC802 ASS'Y
705A773ZR85 1H SHIELD ASS'Y
C828 64C178J104 2T .1UF 250V
C829 67C 305470 9 47UF +-20% 100V
C833 65C 2Z103 4B 0.01UF +80%-20% 2K Z5V
C835 65C 2K4701FT 47PF 2KV
C866 65C 2K4701FT 47PF 2KV
C870 67C 305470 9 47UF +-20% 100V
FB801 53A 40 8 FILTER
FB802 53A 40 8 FILTER
FB804 53A 40 8 FILTER
FB805 71C 55 21 FERRITE BEAD 10*6.0*0.
FB810 71C 55 21 FERRITE BEAD 10*6.0*0.
FR822 71C 55 2 FERRITE BEAD 6.5*5*1.7
FR879 71C 55 2 FERRITE BEAD 6.5*5*1.7
G2 9C 203 8 BRASS PIN
IC801 56C 366507 LM1237BDKD/NA
@
IC803 56C 539 6 LM2480NA/NOPB
J813 71C 55 9 T CORE RF BEAD RH 3.5X6X
L809 71C 55 9 T CORE RF BEAD RH 3.5X6X
P801 33C327812D WAFER*PLUG
P802 33C327812D WAFER*PLUG
P803 33C3278 6D WAFER
R808 61C 208100 64 MOFR 10OHM+-5% 1W
R822 61C 208101 64 MOFR 100OHM+-5% 1W
R879 61C152M101 64 MOFR 100OHM+-5% 2W
R880 61C175L10452T CFR 100K OHM +-5% 1/2W
PARTS LIST OF CRT AUTO INS. PC BOARD
LOCATION ARP773Z2NHPQ SPECIFICATION
6C 31 4 BRASS
!
715C1213 1HPQ CRPC
C801 67C 305109 7T 1UF +-20% 50V
C802 67C 305109 7T 1UF +-20% 50V
C803 67C 305109 7T 1UF +-20% 50V
C805 95C 90 23 JUMPER
C808 65C 44256013T 56PF +-5% NPO 50V
C809 67C 305100 7T 10UF +-20% 50V
C810 67C 305470 7T 47UF +-20% 50V
C811 65C 44210113T 100PF +-5% NPO 50V
C812 65C 44210113T 100PF +-5% NPO 50V
