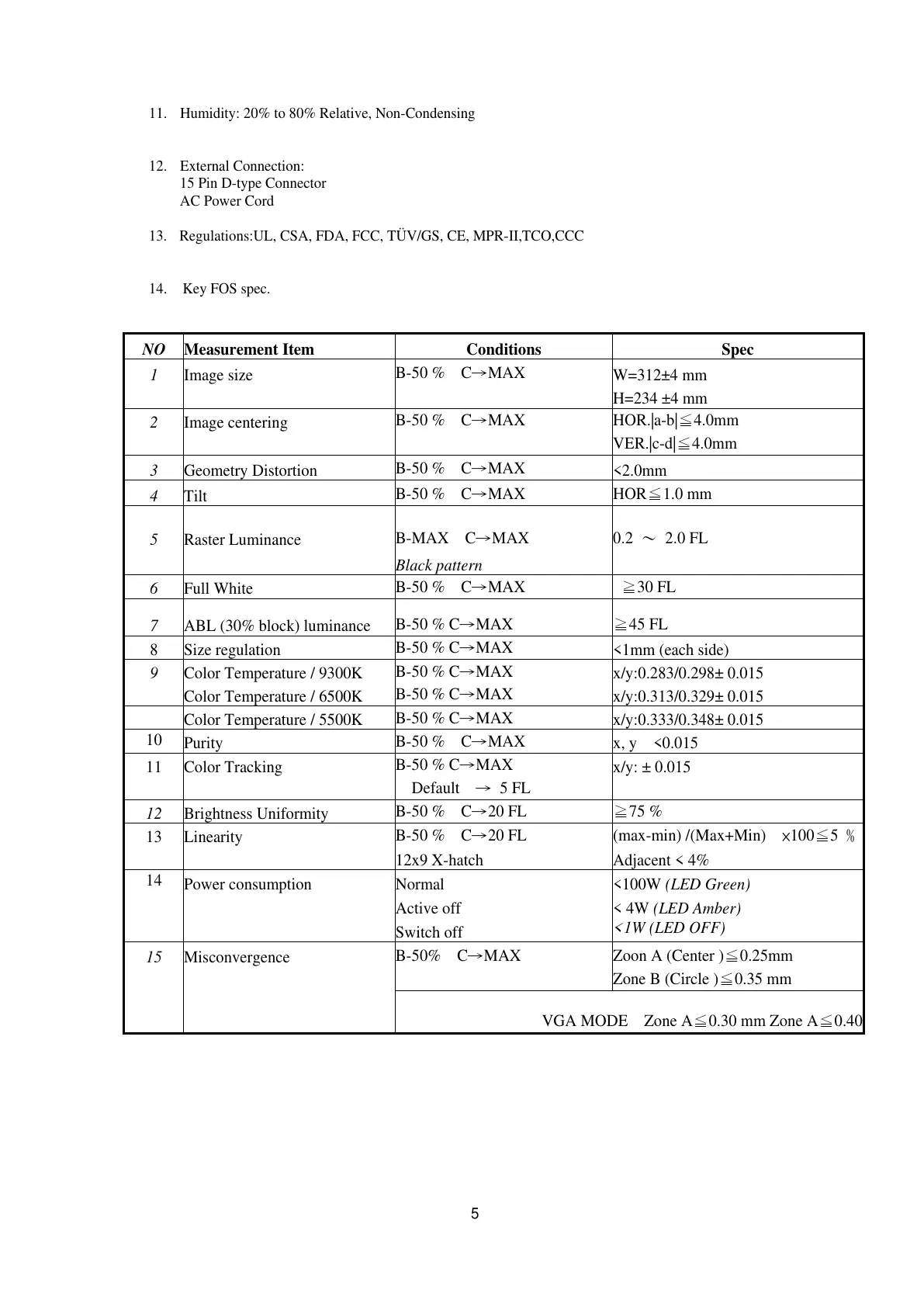

5
11. Humidity: 20% to 80% Relative, Non-Condensing
12. External Connection:
15 Pin D-type Connector
AC Power Cord
13. Regulations:UL, CSA, FDA, FCC, TÜV/GS, CE, MPR-II,TCO,CCC
14. Key FOS spec.
NO Measurement Item Conditions Spec
1
Image size
B-50 % C→MAX
W=312±4 mm
H=234 ±4 mm
2
Image centering
B-50 % C→MAX HOR.|a-b|≦4.0mm
VER.|c-d|≦4.0mm
3
Geometry Distortion
B-50 % C→MAX
<2.0mm
4
Tilt
B-50 % C→MAX HOR≦1.0 mm
5
Raster Luminance
B-MAX C→MAX 0.2 ～ 2.0 FL
B
lack pattern
6
Full White
B-50 % C→MAX ≧30 FL
7
ABL (30% block) luminance
B-50 % C→MAX ≧45 FL
8 Size regulation
B-50 % C→MAX
<1mm (each side)
9
Color Temperature / 9300K
B-50 % C→MAX
x/y:0.283/0.298± 0.015
Color Temperature / 6500K
B-50 % C→MAX
x/y:0.313/0.329± 0.015
Color Temperature / 5500K
B-50 % C→MAX
x/y:0.333/0.348± 0.015
10
Purity
B-50 % C→MAX
x, y <0.015
11 Color Tracking
B-50 % C→MAX
x/y: ± 0.015
Default → 5 FL
12
Brightness Uniformity
B-50 % C→20 FL ≧75 %
13 Linearity
B-50 % C→20 FL (max-min) /(Max+Min) ×100≦5 ﹪
12x9 X-hatch Adjacent < 4%
14
Power consumption
N
ormal <100W (LED Green)
Active off < 4W (LED Amber)
Switch off
<1W (LED OFF)
15
Misconvergence
B-50% C→MAX Zoon A (Center )≦0.25mm
Zone B (Circle )≦0.35 mm
VGA MODE Zone A≦0.30 mm Zone A≦0.40
