HP Pavilion p6000 - Desktop PC User Manual

Upgrading and Servicing Guide 9
Removing an Optical Disc Drive
1 Prepare the computer and remove the computer cover. Complete the “Opening
the Computer” procedures on page 2.

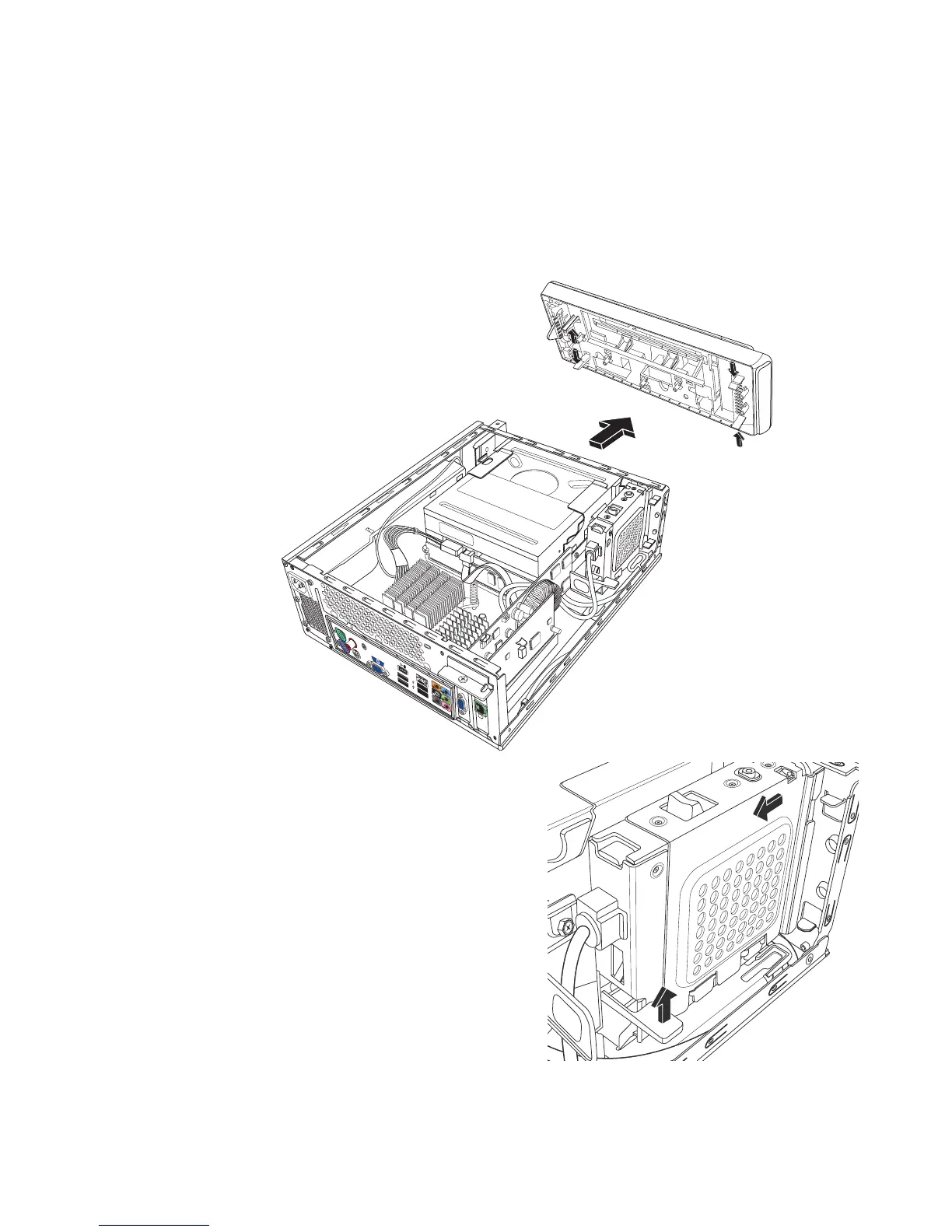

2 Remove the front cover from the computer. Press the two tabs apart at the bottom of
the cover, and press the two tabs together at the top of the cover; then push the
cover out.
3 If your computer includes a Pocket
Media Drive, lift the tab on the Pocket
Media Drive cage. Then pull the cage
back and out of the chassis.
S
-V
ID
E
O
d
ig
ita
l a
u
d
io
O
U
T
w
i
rele
s
s L
A
N
an
te
n
n
a

HP Pavilion p6000 - Desktop PC Specifications

General

Operating System	Windows 7 Home Premium
Audio	Integrated High Definition Audio
Processor	Intel Pentium or AMD Athlon II
RAM	Up to 8GB DDR3
Storage	Up to 1TB HDD
Graphics	Integrated Intel HD Graphics or AMD Radeon HD
Optical Drive	DVD Writer
Networking	10/100/1000 Gigabit Ethernet
Ports	USB 2.0
Card Reader	Multi-format digital media card reader
