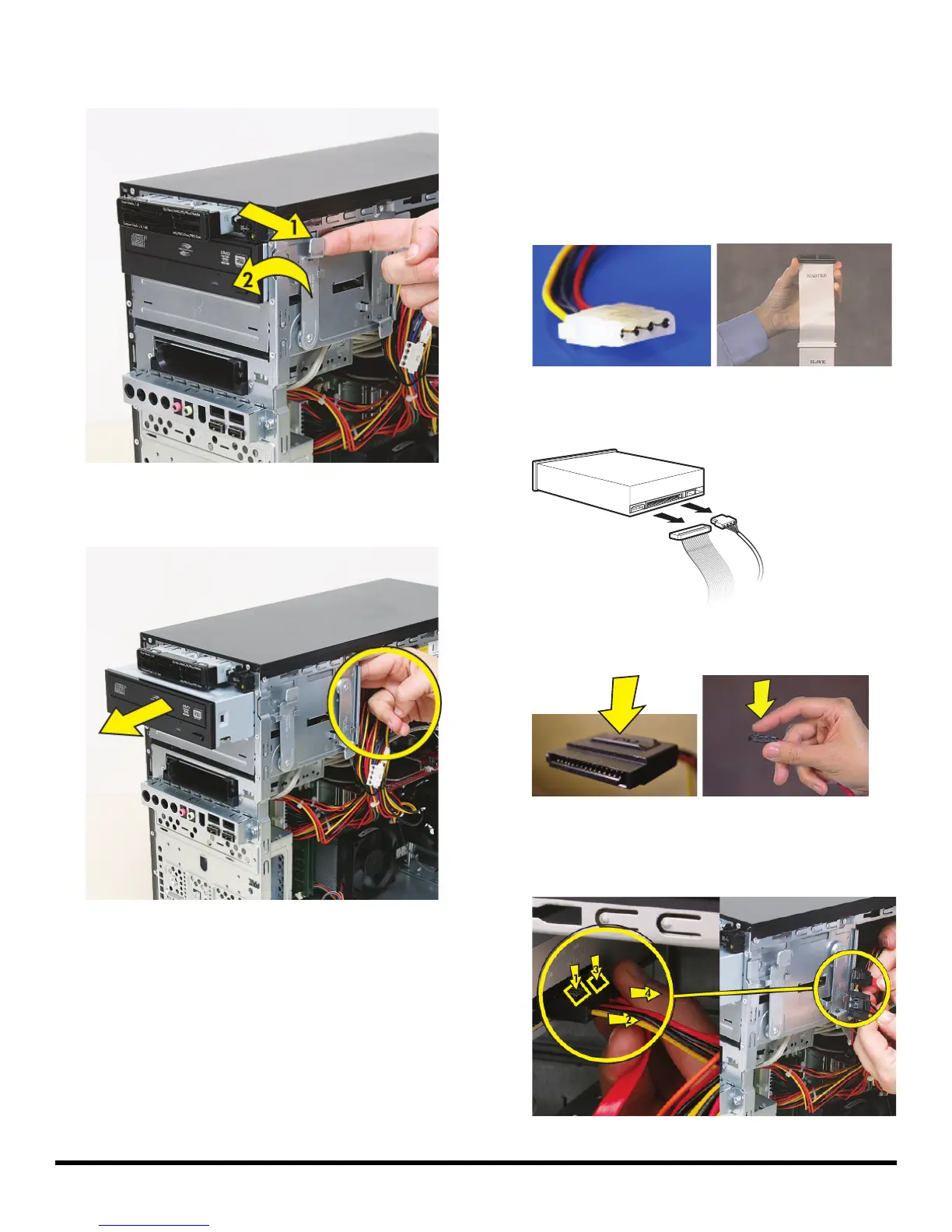

537487-001 — Removing and Replacing an Optical Disc Drive 5
11 Pull out the optical drive latch (1), and then swing it to
the left until it is in the center position (2).
12 Push the drive partway out through the front of the
computer.
13 Disconnect the cables from the drive:
The plugs on the cables are keyed and can be
inserted only when aligned properly with the
connector on the drive.
In addition, some plugs have a latch that must be
pressed or squeezed to release the plug while pulling
it from the connector.
Plugs without a latch:
For plugs without a latch, pull the plug straight out
from the connector.
Plugs with a latch:
For plugs with a latch, press the latch (1 or 3) in the
center of each plug, and then pull the plug (2 or 4)
from the connector.
