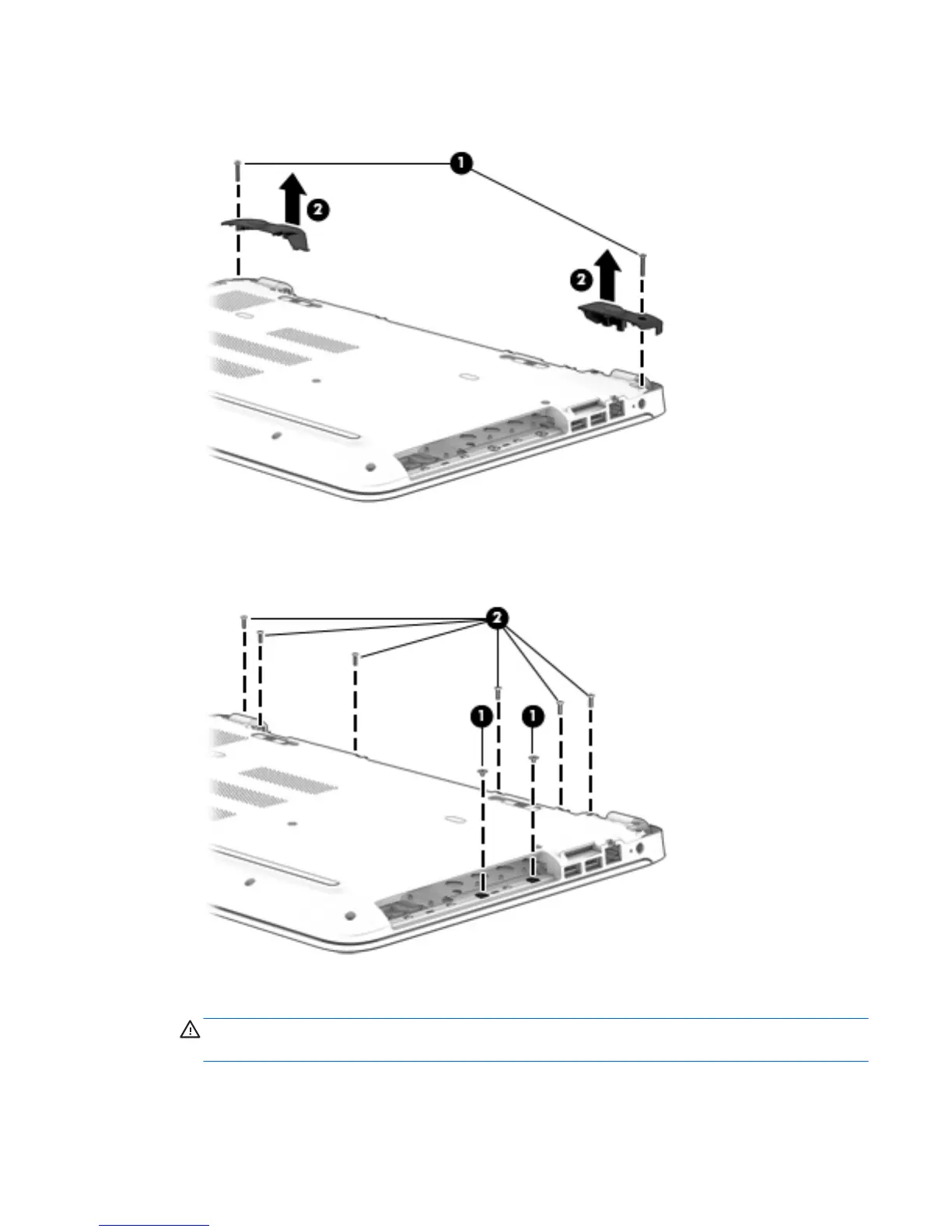

2. Remove the two Phillips PM2.5×12.0 screws (1) that secure the hinge covers to the computer, and then
lift the covers o the computer (2).
3. Remove the two Phillips PM2.0×2.0 screws from the optical drive bay (1).
4. Remove the six Phillips PM2.5×6.5 screws from near the battery bay (2).
5. Position the computer upside down.
CAUTION: To avoid the hard drive falling out of the computer and getting damaged, be sure the
computer is upside-down when removing the bottom cover.
6. Remove the two screw covers (1) and nine Phillips PM2.5×6.5 screws (2) that secure the top cover to the
computer.
Component replacement procedures 47
