Description Spare part number
For use in all models except for Star Wars Special Edition models 806758-001
For use in Star Wars Special Edition models 837745-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 40).
5. Remove the optical drive (see Optical drive on page 41).
6. Remove the bottom cover (see Bottom cover on page 44).
7. Remove the system board (see System board on page 62).
To remove the display assembly:

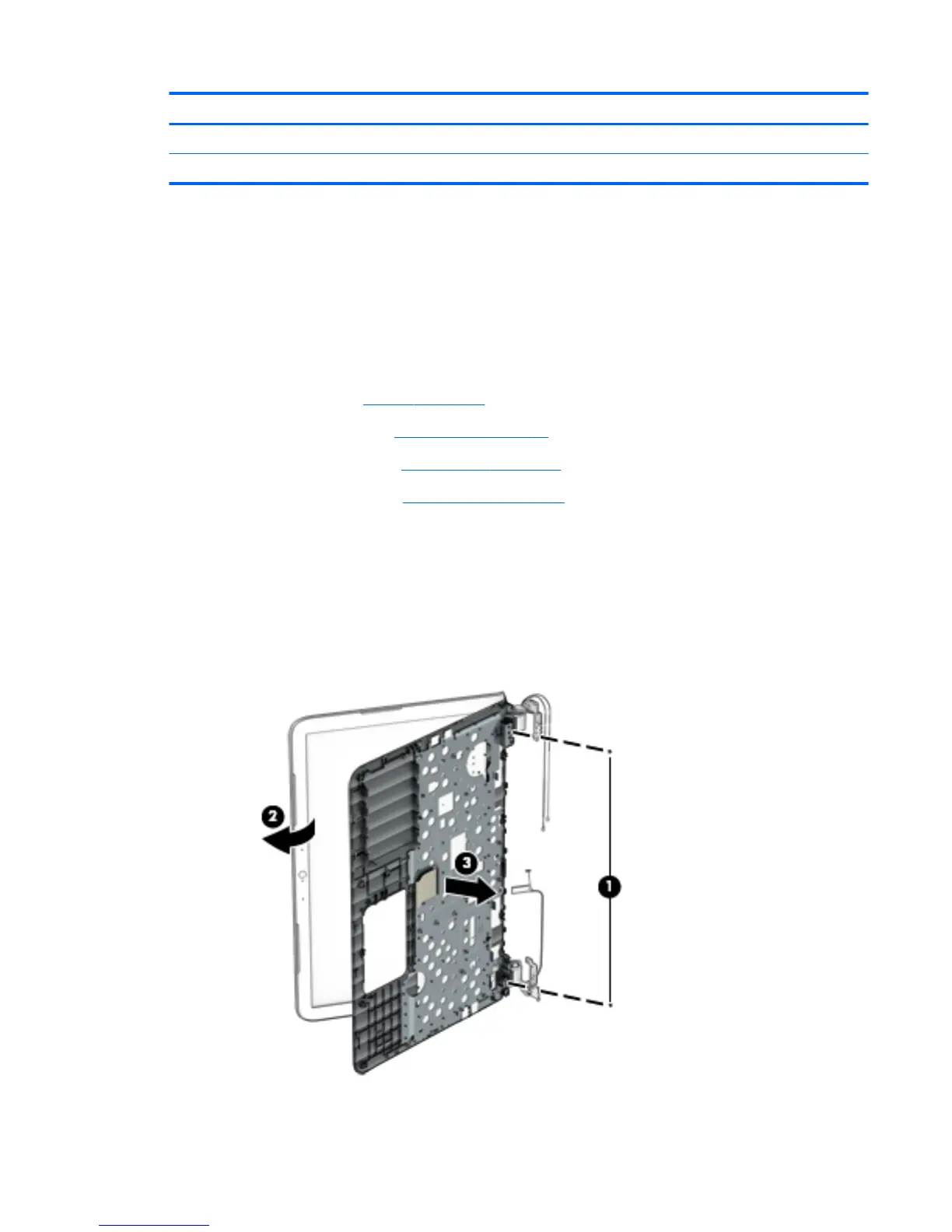

1. Position the computer on its side, partially open.
2. Remove the two Phillips PM2.5×5.0 screws (1) that secure the display assembly to the computer.
3. Open the display to rotate the hinges upward to an angle (2).
4. Separate the display assembly from the computer (3).
If it is necessary to replace any of the display assembly subcomponents:
Component replacement procedures 73
