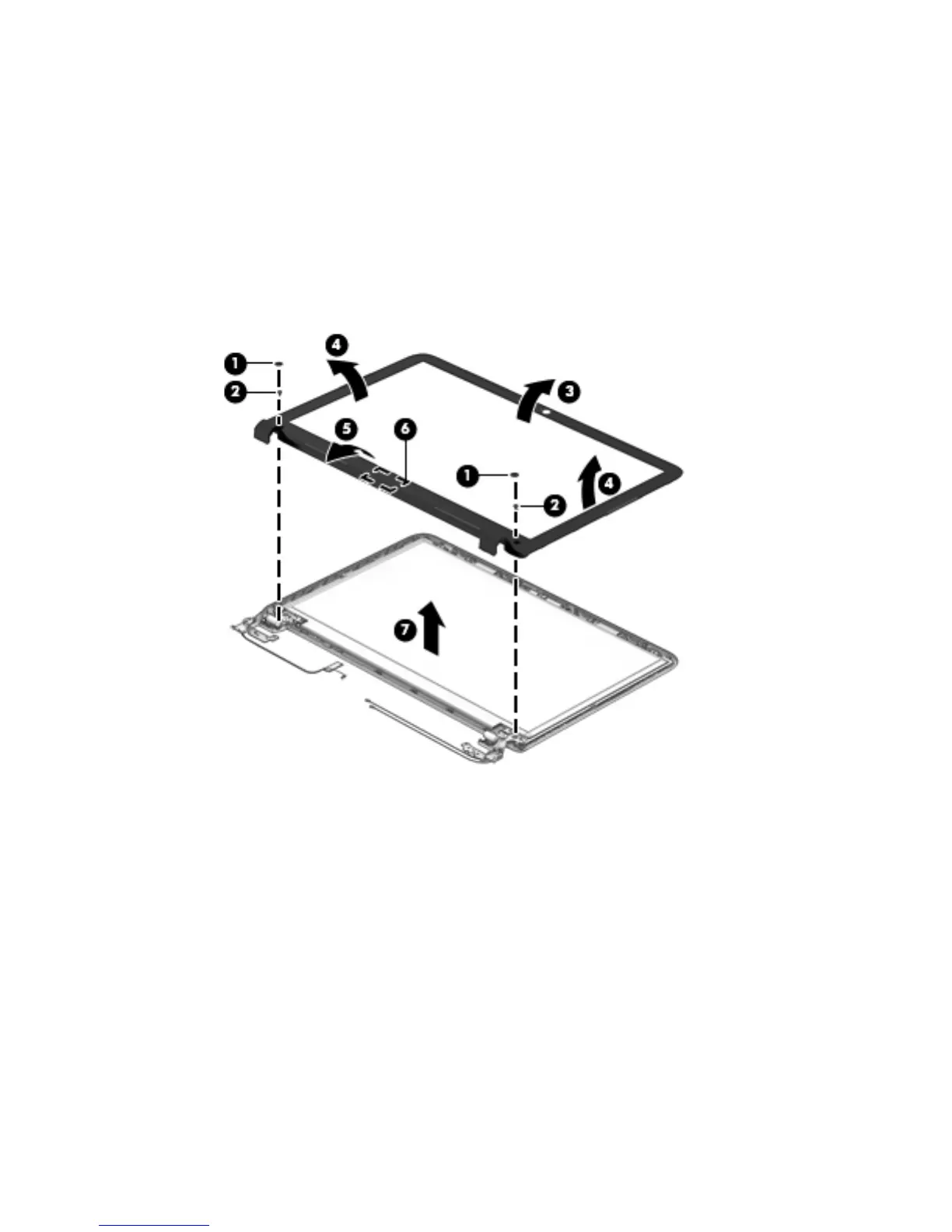

1. To remove the display bezel:
a. Remove the two screw covers (1) and the two Phillips PM2.0×3.0 screws (2) that secure the display
assembly to the computer.
b. Flex the inside of the top edge (3), the left and right edges (4), and the bottom edge (5) of the
display bezel until the bezel disengages from the display enclosure.
c. Disengage the double-sided tape located in the middle, bottom of the bezel (under the logo) (6).
d. Remove the display bezel (7).
The display bezel is available using spare part number 809027-001.
2. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Use a tool to pry the webcam and disengage the adhesive that secures it to the display (1).
c. Disconnect the cable (2) from the module.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
