HP PAVILION TX2500 - Page 60

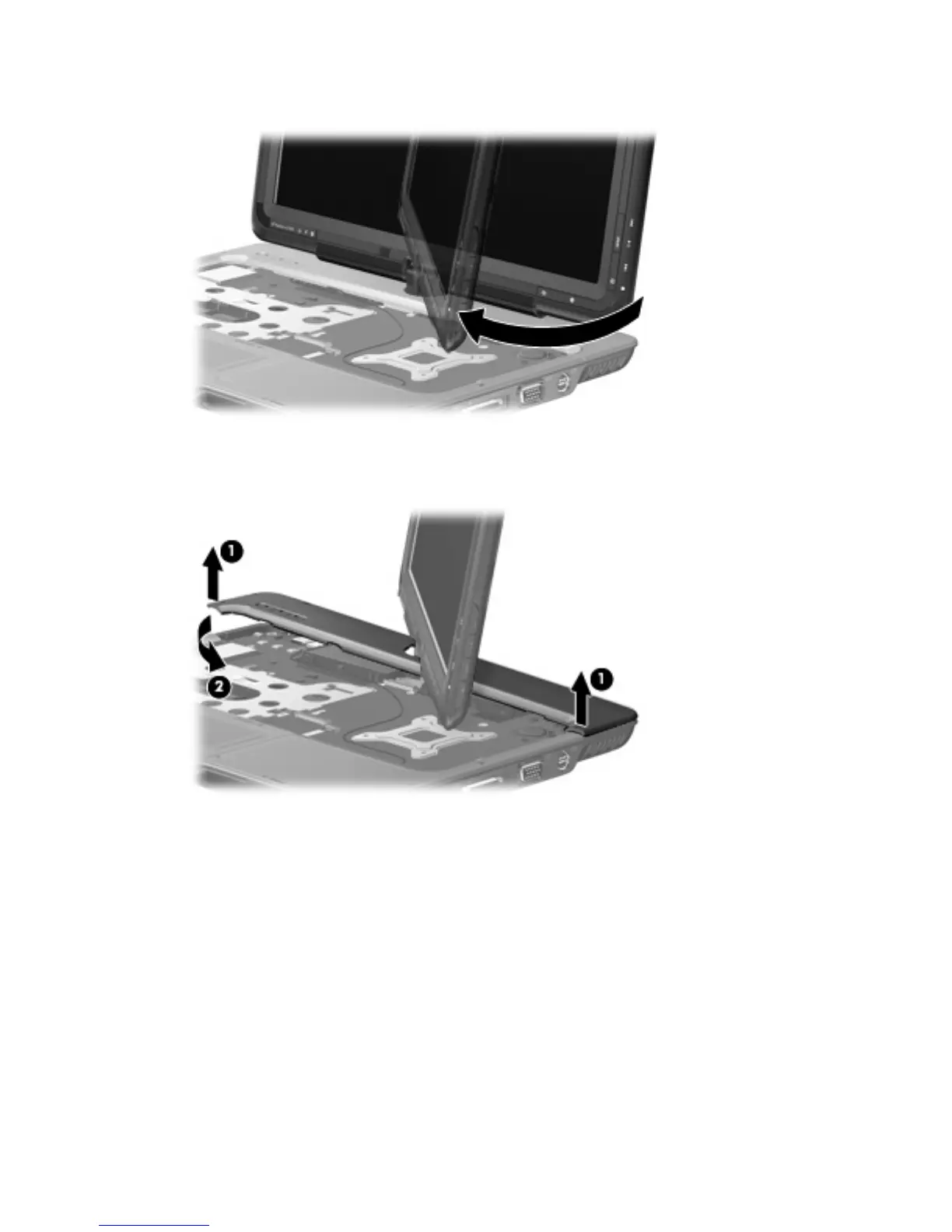

5. Rotate the display clockwise approximately 45 degrees.
6. Lift the left and right front corners of the switch cover (1) until it disengages from the computer.
7. Rotate the switch cover (2) counterclockwise and remove it from the computer.
Reverse this procedure to install the switch cover.
52 Chapter 4 Removal and replacement procedures
