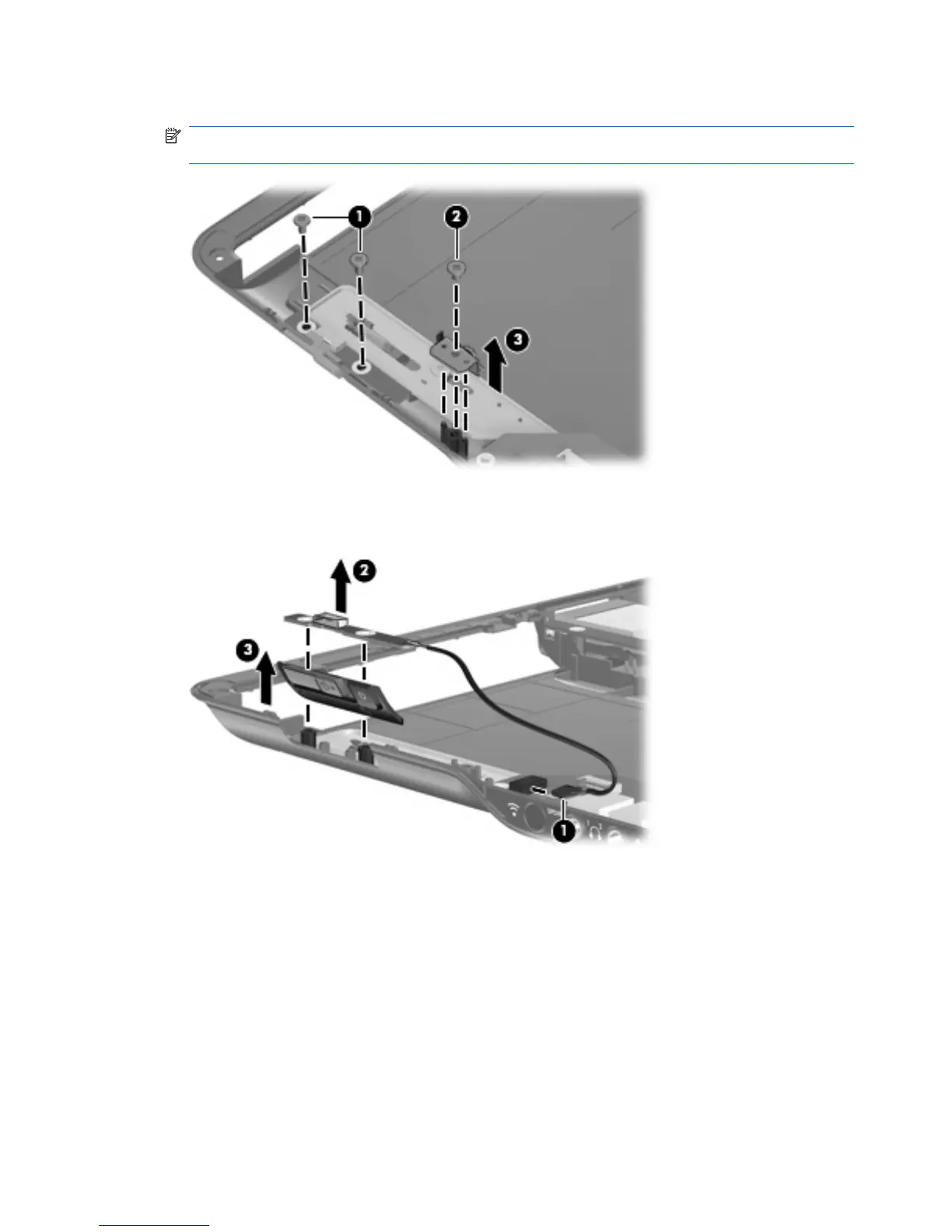

3. Remove the display release hook assembly (3).
NOTE: The display release hook assemblies are included with the base enclosure spare part
kits.
4. Disconnect the power switch board cable (1) from the system board.
5. Remove the power switch board (2) and power switch actuator (3) from the base enclosure.
Reverse this procedure to install the power switch assembly.
60 Chapter 4 Removal and replacement procedures
