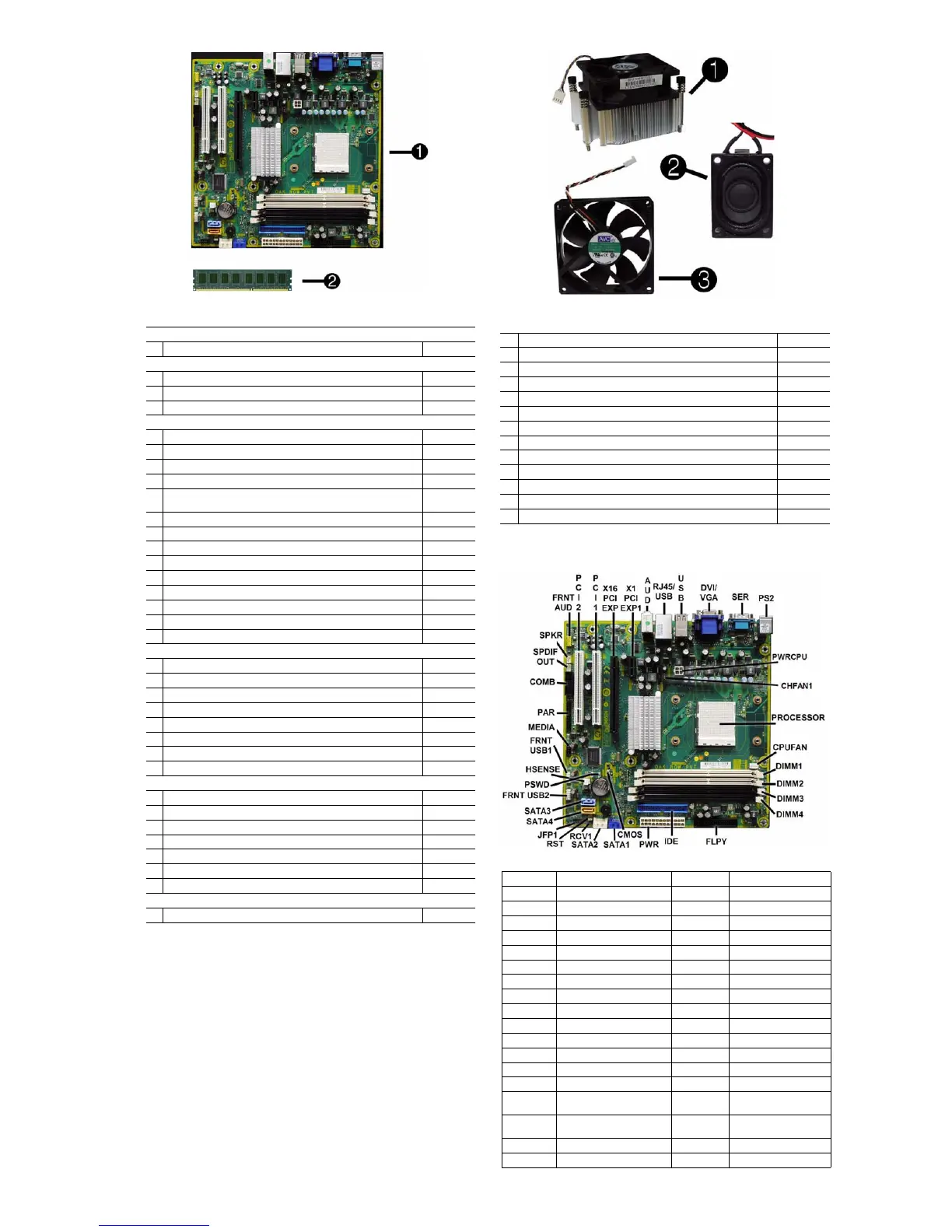

HP Pro 3005/3085 Illustrated Parts & Service Map, MT chassis 600835-001 page 2
System Board
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 591598-001
Memory modules (PC3-10600, CL9)
21 GB
576109-001
*2 GB
576110-001
*4 GB
585157-001
Other boards
* Agere International 56K LSI v92 modem, includes bracket 490689-001
* ATI Radeon HD4350 (RV710) PCIe x16 graphics card, 512 MB 578368-001
* ATI Radeon HD4550 (RV710) PCIe x16 graphics card, 256 MB 538051-001
* ATI Radeon HD4550 (RV710) PCIe x16 graphics card, 512 MB 584217-001
* ATI Radeon HD4650 (RV730) PCIe x16 graphics card, 1 GB, 15 month
warranty, EMEA only
578174-001
* GeForce GT205 512-MB PCIe graphics card (for use in China only) 589145-001
* GeForce GT315 512-MB PCIe graphics card (for use in China only) 589146-001
* GeForce GT230 1.5-GB PCIe graphics card 586381-001
* GeForce GT230 1.5-GB PCIe graphics card (APJ only) 590812-001
* GeForce GT210 512-MB PCIe graphics card 586382-001
* 802.11b/g/n WLAN PCIe adapter 538048-001
* Intel Gigabit NIC, includes bracket 490367-001
* HP FireWire IEEE 1394 PCI card, FH 515182-001
* Serial/parallel port PCI adapter 321722-001
AMD Athlon II X2 processors with alcohol pad and thermal grease:
* X4 630, quad core, 2-MB L2 cache, 2.8 GHz 586735-001
* X4 620, quad core, 2-MB L2 cache, 2.6 GHz 586734-001
* X3 435, quad core, 2-MB L2 cache, 2.9 GHz 586733-001
* X3 425, quad core, 2-MB L2 cache, 2.7 GHz 586732-001
* X2 250, dual core, 2-MB L2 cache, 3.0 GHz 584221-001
* X2 245, dual core, 2-MB L2 cache, 2.9 GHz 586731-001
* X2 240, dual core, 2-MB L2 cache, 2.8 GHz 584222-001
* X2 215, dual core, 2-MB L2 cache, 2.75 GHz 586730-001
AMD Phenom II processors with alcohol pad and thermal grease:
* X4 945, quad core, 2-MB L2 cache, 3.0 GHz 586741-001
* X4 925, quad core, 2-MB L2 cache, 2.8 GHz (6-MB L3 cache) 584219-001
* X4 820, quad core, 2-MB L2 cache, 2.8 GHz (4-MB L3 cache) 586739-001
* X4 805, quad core, 2-MB L2 cache, 2.5 GHz 585156-001
* X3 720, triple core, 1.5-MB L2 cache, 2.8 GHz 581073-001
* X2 550, dual core, 1-MB L2 cache, 3.1 GHz 580749-001
* X2 545, dual core, 1-MB L2 cache, 3.0 GHz 584220-001
AMD Sempron processors with alcohol pad and thermal grease:
* 140, single core, 1-MB L2 cache, 2.7 GHz 590132-001
* Not shown
Miscellaneous Parts
1 Heatsink with alcohol pad and factory-applied thermal grease 591601-001
2 Chassis fan 438741-001
3 Internal speaker 463316-001
*
Media card reader 480032-001
*
Hood sensor 534484-001
*
PCI slot cover 580507-001
*
USB powered speakers 571536-001
*
Serial port 530599-001
*
Printer port 465339-001
* Foot kit 530593-001
* Mouse, optical 537748-001
* Mouse, laser 570580-001
* Rear I/O cover 592507-001
*Not shown
System Board Connectors and Jumpers (component location may vary)
FRNT_AUD Front panel connector FLPY Floppy drive connector
PCI2 PCI slot 2 IDE IDE connector
PCI1 PCI slot 1 PWR Main power connector
X16PCEXP PCIe X16 connector CMOS CMOS jumper
X1PCIEXP1 PCIe X1, slot 1 SATA1 1st SATA optical drive
AUD Double stack audio connector SATA2 1st SATA hard drive
RJ45/USB Stacked RJ-45/USB connectors JFP1 Power switch connector
DVI/VGA Stacked DVI/VGA connector SATA3 2nd SATA optical drive
USB USB connector SATA4 2nd SATA hard drive
SER Serial port FRNT_USB2 2nd USB connector
PS2 PS/2 connectors PSWD Password header
PWRCPU CPU power connector HSENSE Hood sensor connector
CHFAN1 System fan connector FRNT_USB1 1st USB connector
PROCESSOR Processor slot MEDIA Media card reader connector
CPUFAN CPU/heat sink fan connector PAR Parallel port connector
DIMM1 Memory socket 1 COMB 2nd media reader connec-
tor
DIMM2 Memory socket 2 SPDIF OUT Digital line-in/line-out
audio connector
DIMM3 Memory socket 3 SPKR Speaker connector
DIMM4 Memory socket 4
