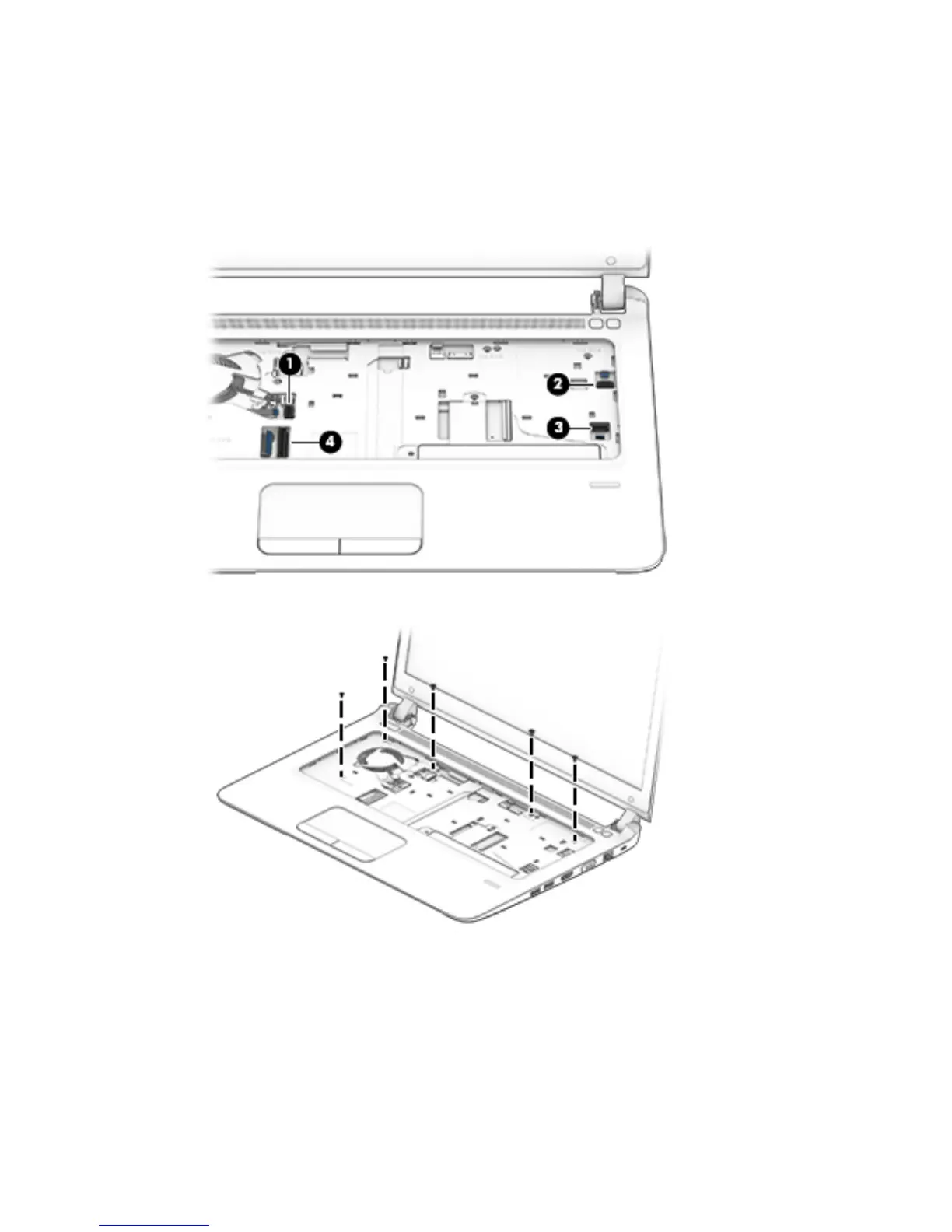

5. Disconnect the following cables from the system board:
●
(1): Fan cable
●
(2): Function board cable
●
(3): Fingerprint reader cable
●
(4): Card reader board cable
6. Remove the 5 Torx T8M2.5×6.0 screws from the top cover.
Component replacement procedures 49
