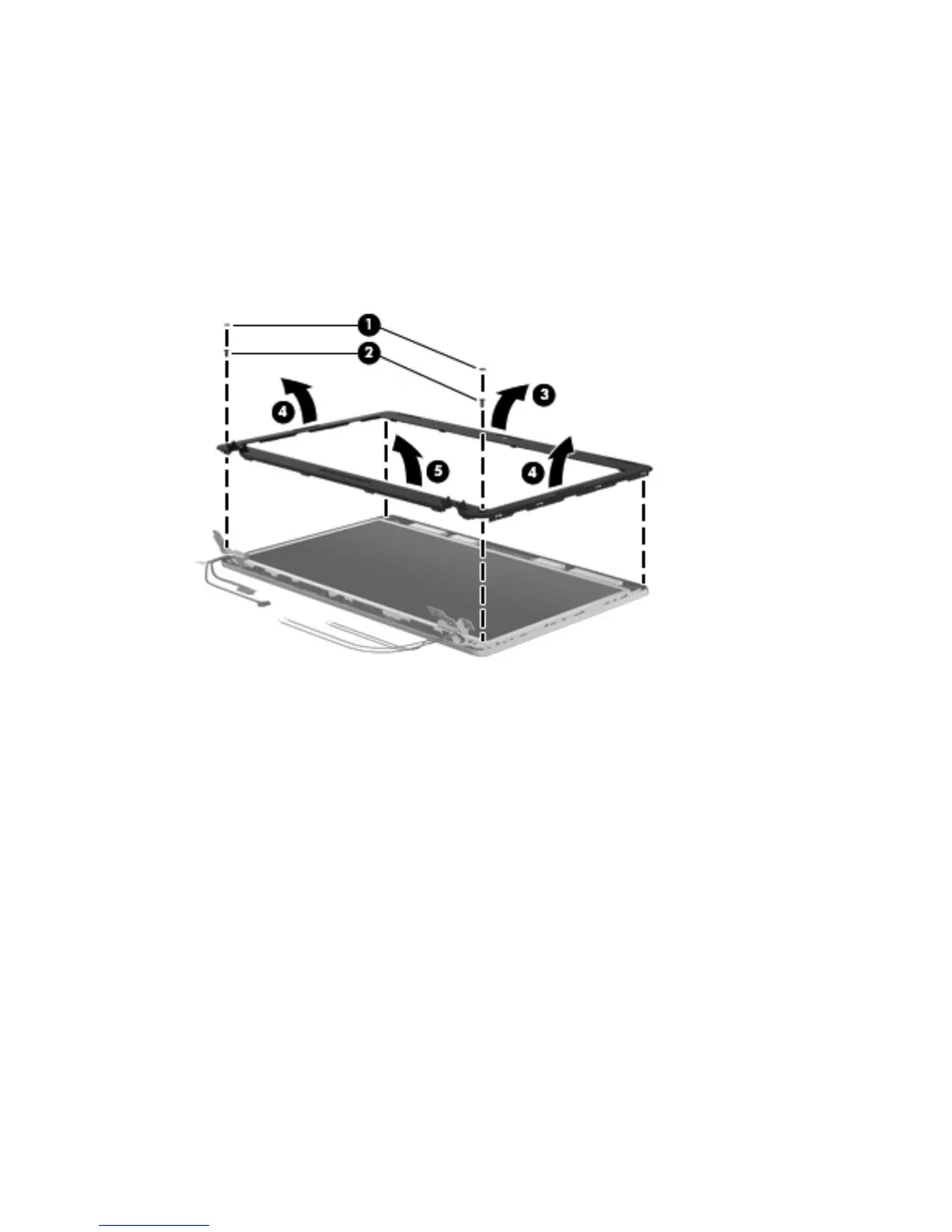

7. Flex the top (3) of the bezel, the inside edges of the left and right sides (4), and then the bottom
(5) of the bezel until it disengages from the display enclosure.
The bezel is available using the following spare part numbers:
646265-001: 4530s models without a webcam
646266-001: 4530s models with a webcam
646267-001: 4730s models without a webcam
646268-001: 4730s models with a webcam
8. Remove the display bezel.
106 Chapter 4 Removal and replacement procedures
