6. Lift the opposite end of each speaker away from the tab and up at an angle, and then pull the
speaker away from tab and up and off the top cover (3).
7. For model 4440s/4441s, position the computer upright and open as far as possible.

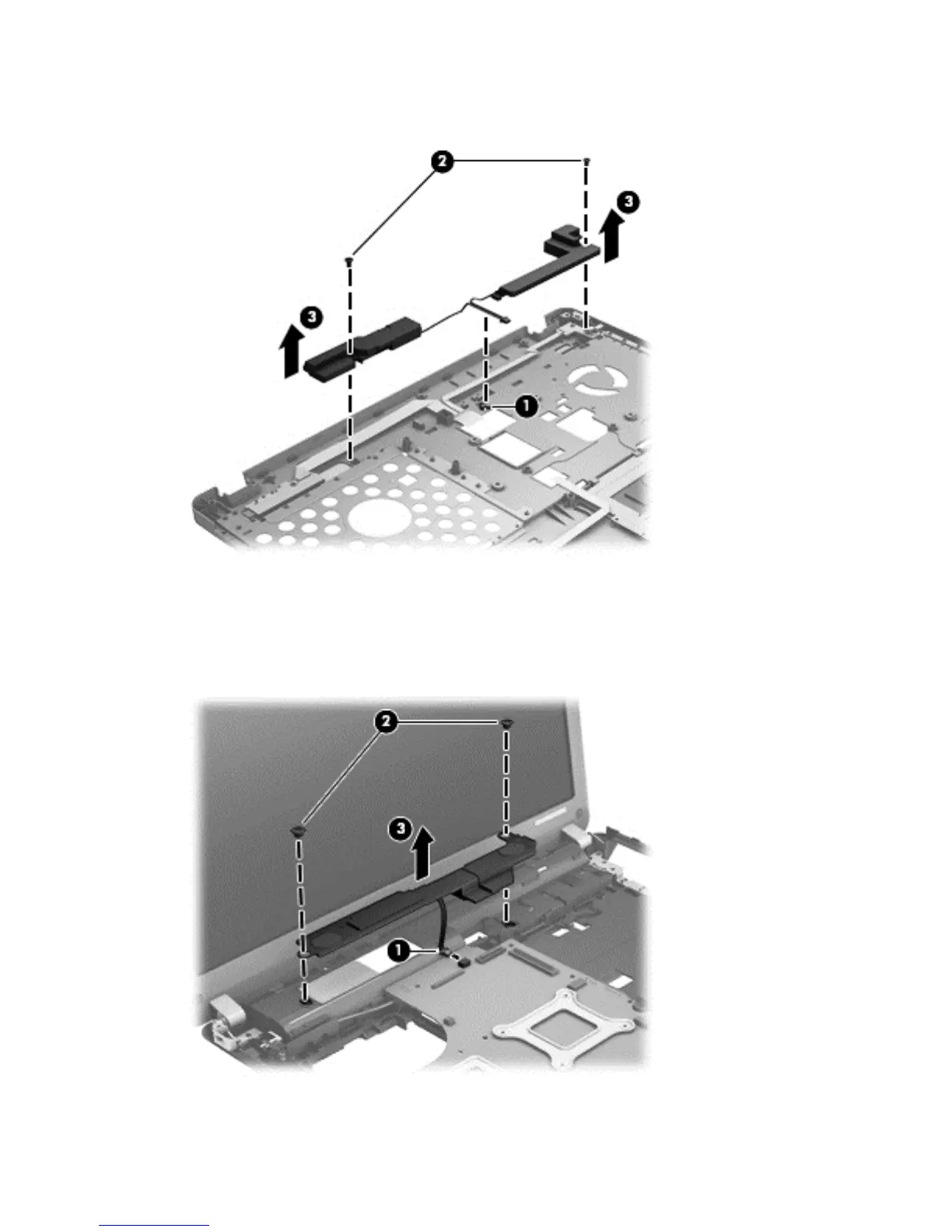

8. Disconnect the speaker cable from the system board (1).
9. Remove the two broadhead PM2.0×3.0 screws (2) that secure the speakers to the computer,
and the remove the speakers from the computer (3).
Reverse these procedures to install the speaker assembly.
92 Chapter 4 Removal and replacement procedures
