HP ProBook 4540s - Page 80

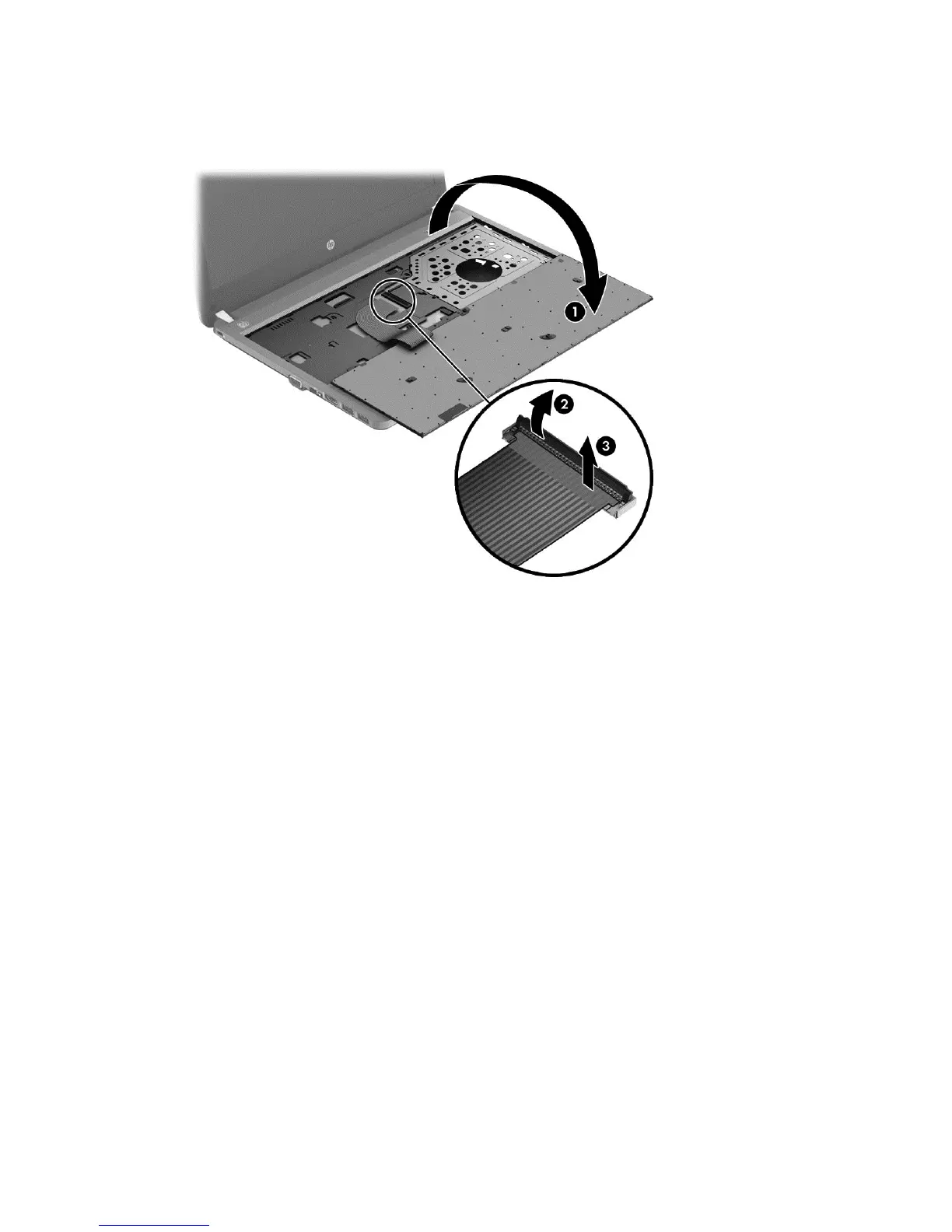

8. Rotate the keyboard until it rests on the palm rest (1), and then disconnect the keyboard cable
by lifting the keyboard connector latch (2), and then disconnecting the keyboard cable from the
system board (3).
9. Remove the keyboard.
Reverse this procedure to install the keyboard.
72 Chapter 4 Removal and replacement procedures
