4. Remove the battery (see Battery on page 55).
5. Remove the following components:
a. Bottom door (see
Bottom door on page 58).
b. Keyboard (see
Keyboard on page 70)
c. Heat shield (see
Heat shield on page 73)
d. Fan (see
Fan on page 75)
e. Heat sink (see
Heat sink on page 77)

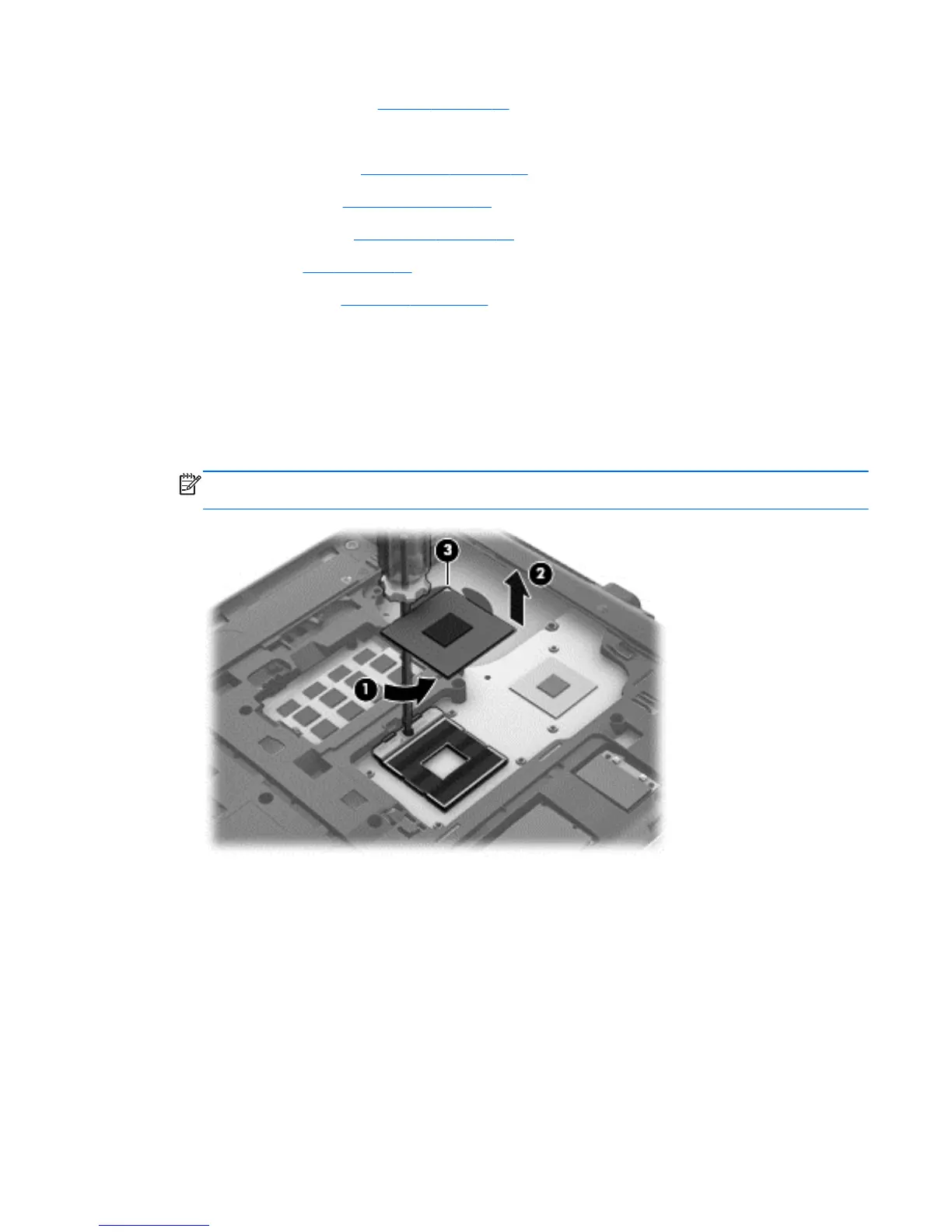

Remove the processor:
1. Position the computer upside-down.
2. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn
counterclockwise until you hear a click.
3. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle embossed on
the processor slot when you install the processor.
Reverse this procedure to install the processor.
Component replacement procedures 81
