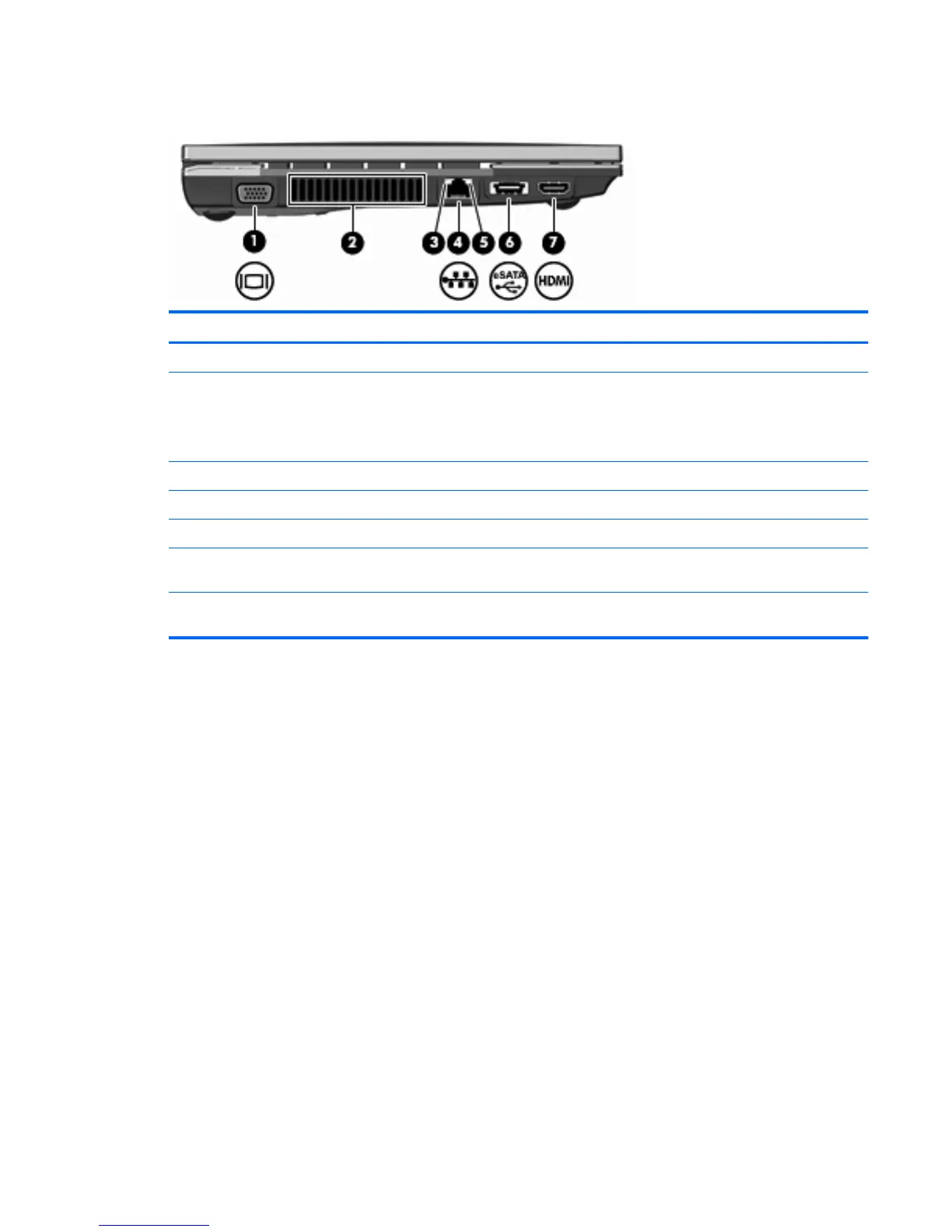

Left-side components
Component Description
(1) External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(3) Network activity light Amber: Data is being transmitted over the network.
(4) RJ-45 (network) jack Connects a network cable.
(5) Network connection light Green: The computer is connected to the network.
(6) USB/eSATA port Connects a high-performance eSATA component, such as an
eSATA external hard drive, or connects an optional USB device.
(7) HDMI port Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio component.
Left-side components 15
