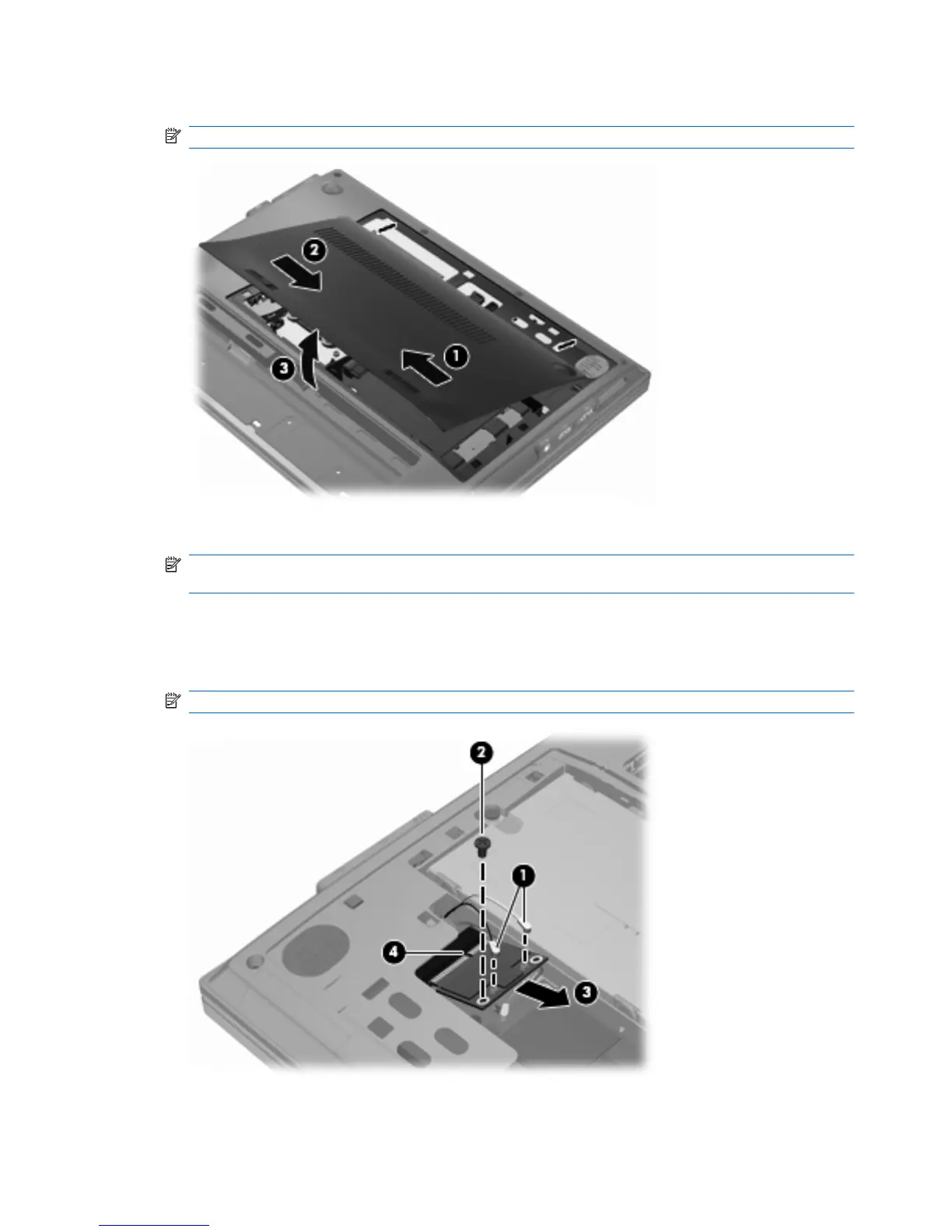

4. Release the latch and remove the service access door (3).
NOTE: The service access door is available in the Plastics Kit, part number 610828-001.
5. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
6. Remove the PM2.0×3.0 screw (2) that secures the WLAN module to the system board. (The WLAN
module tilts up.)
7. Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion.
Reverse this procedure to install the WLAN module.
44 Chapter 4 Removal and replacement procedures
