Switch cover
Description Spare part number
Switch cover 610832-001
Before removing the switch cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 40).
Remove the switch cover:
1. Position the computer upside down with the battery bay toward you.

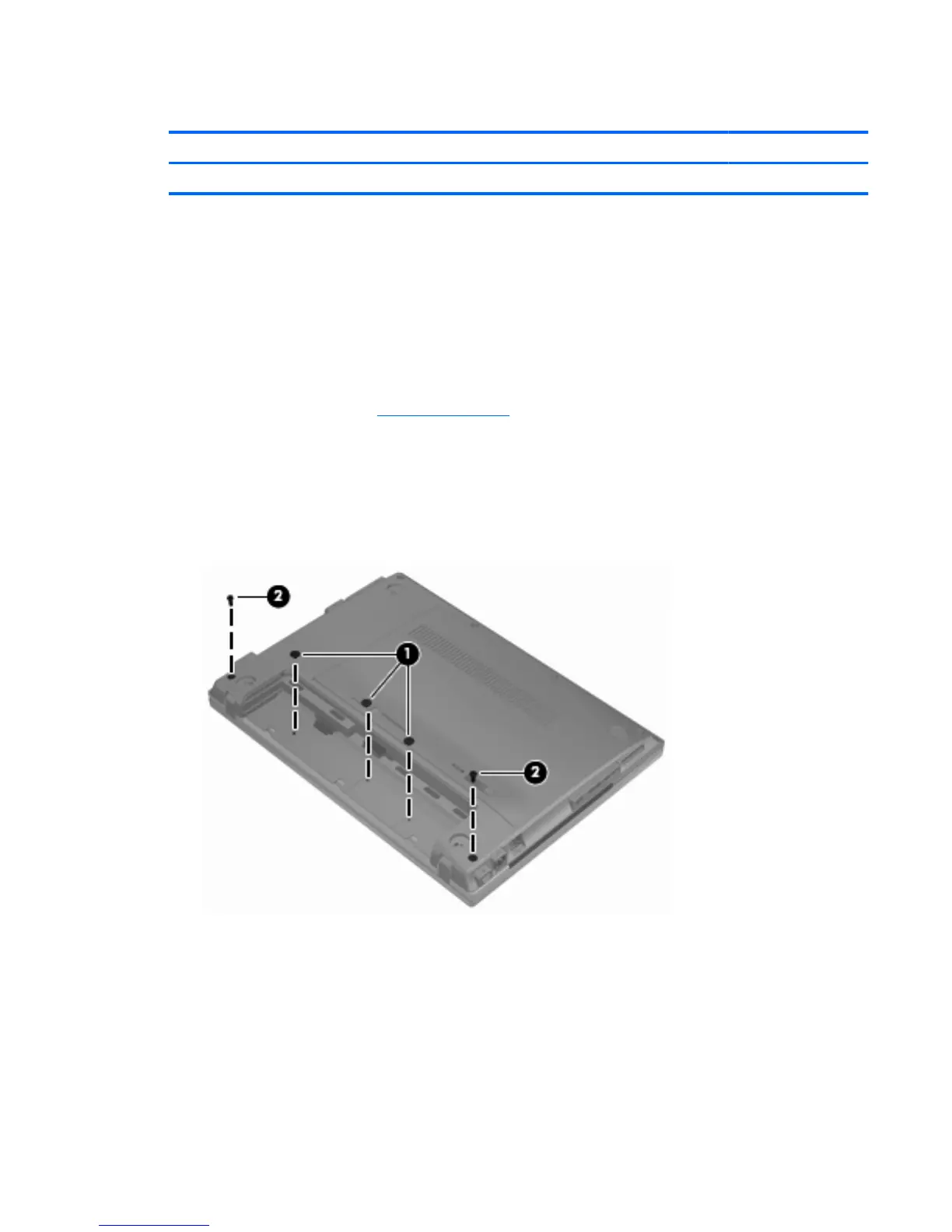

2. Remove the three PM2.0x2.5 screws (1) inside the battery bay.
3. Remove the two PM2.5x6.5 screws (2) located outside the battery bay.
4. Position the computer right-side up with the front toward you, and open the computer.
5. Using a flat-bladed screwdriver, pry up the front edge of the switch cover from the keyboard.
Component replacement procedures 51
