HP ProBook 5220m - Notebook PC

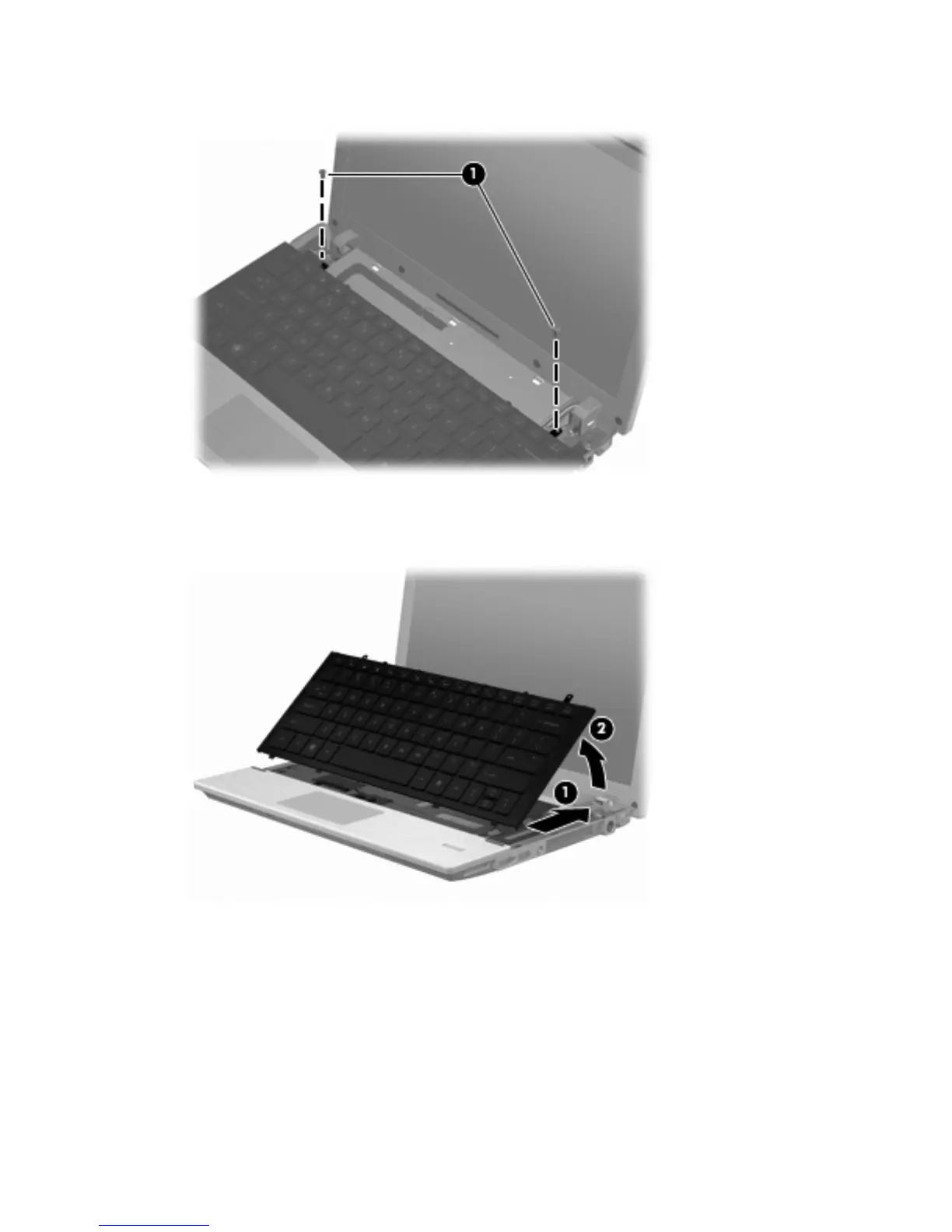

3. Remove the two PM2.0x5.0 screws (1) that secure the keyboard to the computer.
4. Gently slide the keyboard back toward the display (1) until you hear the locking tabs release.
5. Lift the rear edge of the keyboard (2) and rotate it toward you until it rests at an angle.
54 Chapter 4 Removal and replacement procedures
