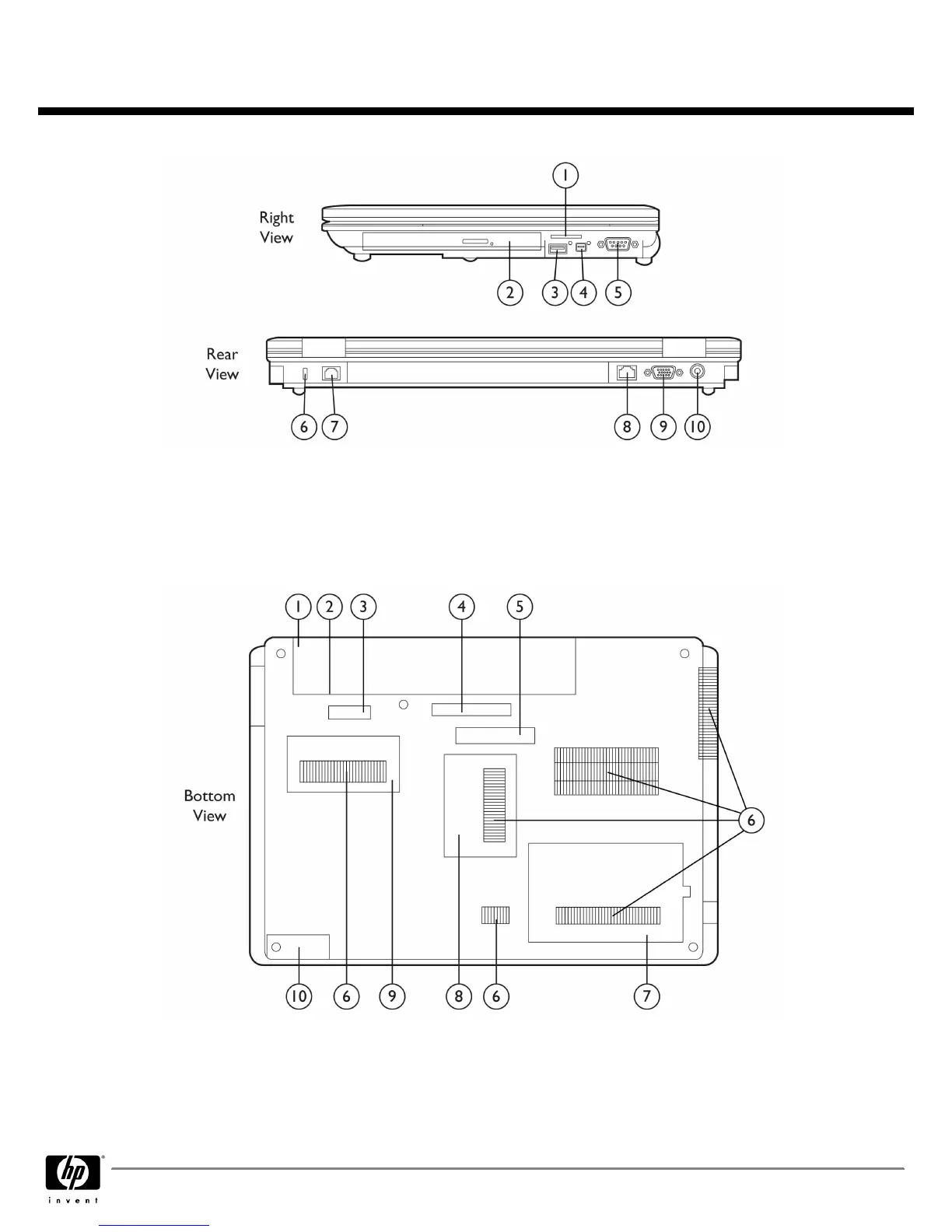

1. Media Card Reader 6. Kensington Lock slot
2. Upgrade Bay (optical drive or second hard drive) 7. RJ-11/modem port
3. (1) USB 2.0 port 8. RJ-45/Ethernet port
4. 1394a port 9. VGA/external monitor connector
5. Serial port 10. Power connector
1. Battery bay 6. Vents
2. SIM slot for WWAN (select models) – inside battery bay 7. Hard drive bay
3. Battery release latch 8. Memory module compartment
4. Docking connector 9. WLAN module compartment (select models)*
5. Secondary battery connector 10. Bluetooth module compartment*
* Not user accessible
QuickSpecs
HP ProBook 6545b Notebook PC
HP ProBook 6545b Notebook PCHP ProBook 6545b Notebook PC
HP ProBook 6545b Notebook PC
Overview
DA - 13396 North America — Version 7 — January 18, 2010 Page 2
