Connectors, Switches, and LEDs
This chapter contains illustrations and tables identifying and describing the connectors, switches,
buttons, and LED indicators located on the front panel, rear panel, system board and hard drives of
the HP ProLiant DL160 G5p server.
Connectors and components
Front panel components

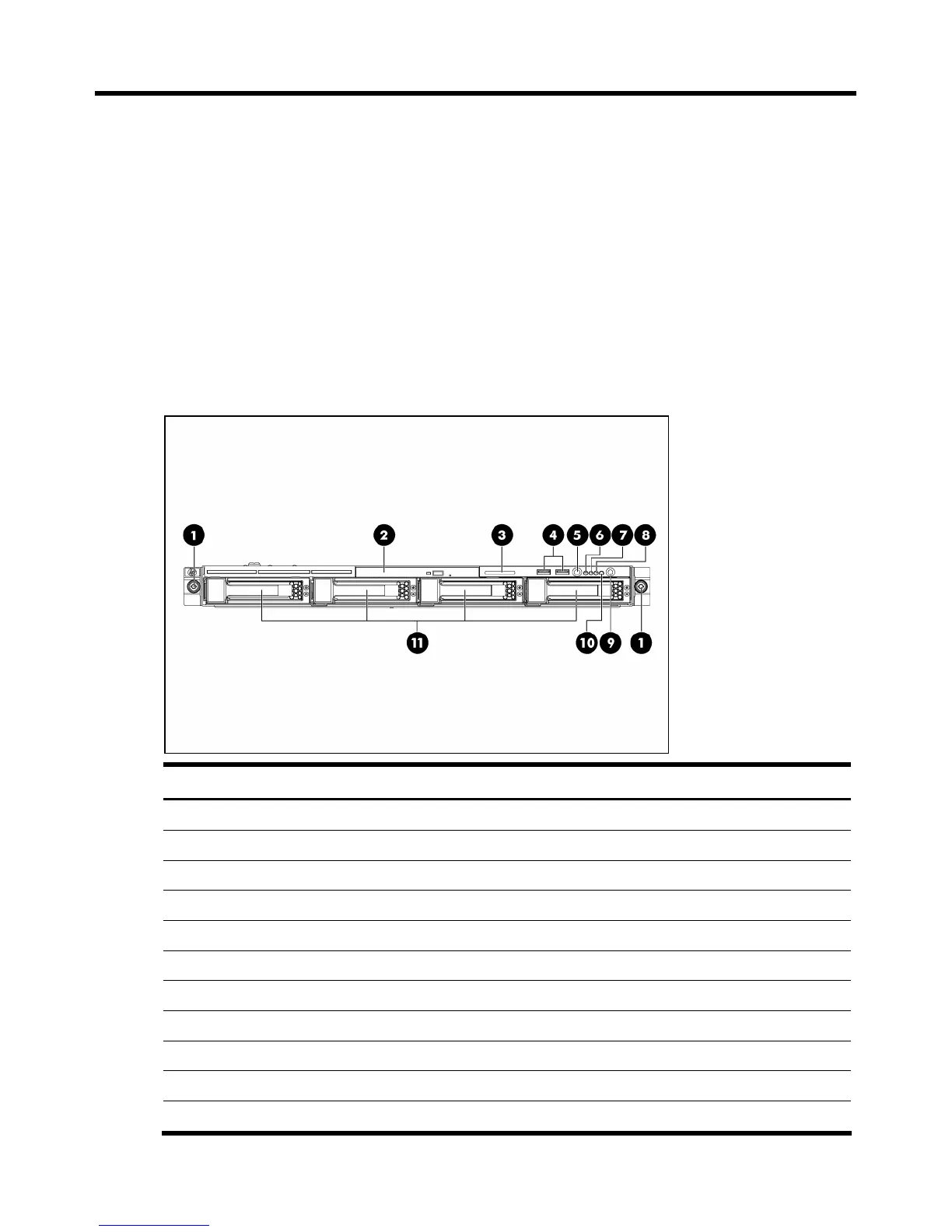

Figure 1 Front panel components
Item Description
1 Thumbscrews for rack mounting
2 Optical disk drive bay
3 Serial number pull tab
4 Two front USB 2.0 ports
5 Unit identification (UID) LED button
6 System health LED
7 NIC1 LED
8 NIC2 LED
9 Power button with LED indicator (bicolor: green and amber)
10 HDD LED
11 Hard disk drive (HDD) bays 1, 2, 3, and 4
