Removal and replacement procedures 44

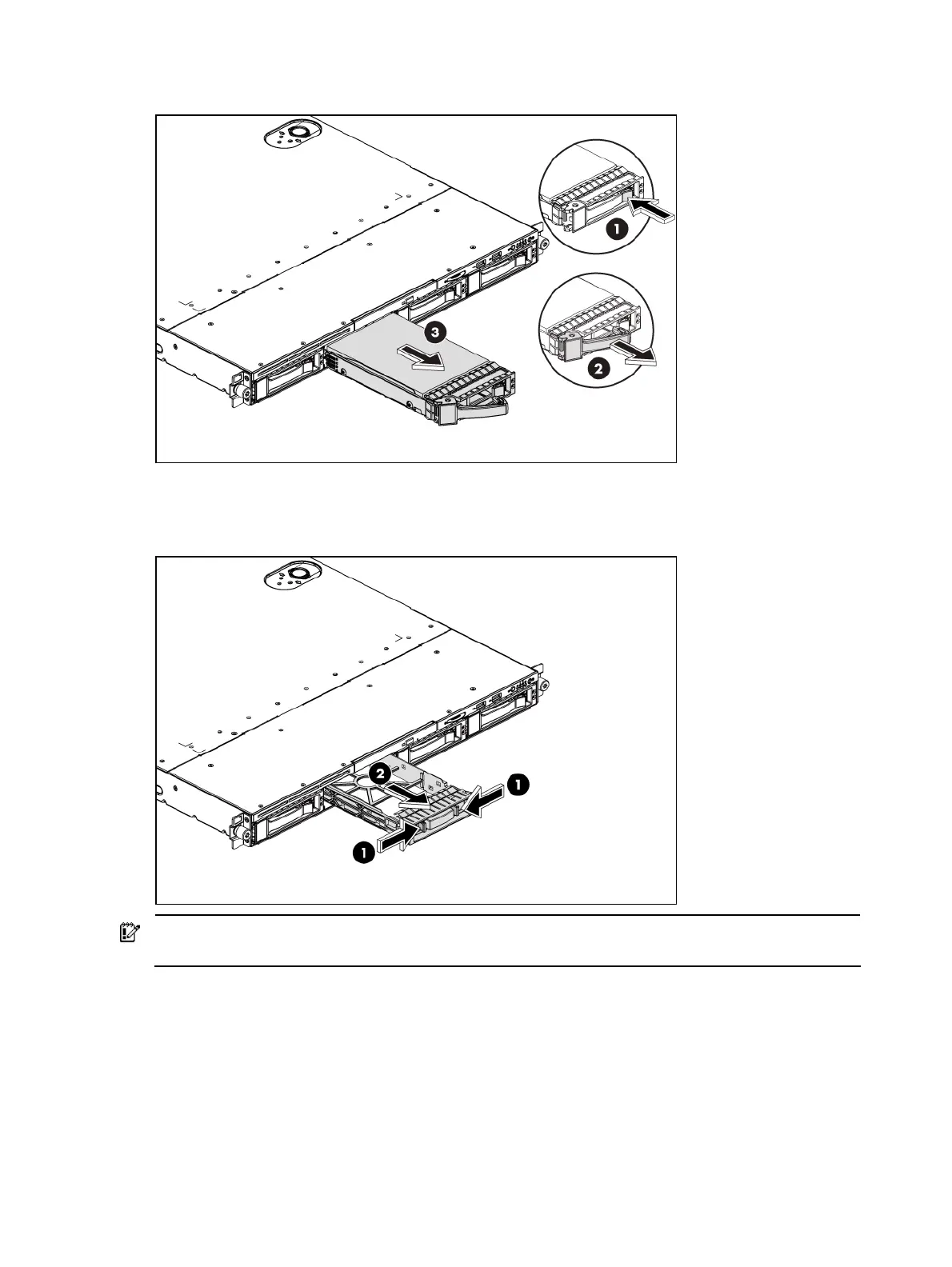

Figure 14 Removing the Hot-plug Hard Drive Assembly
To install the hot-plug hard drive:
1. Press the release tabs, and then pull the hard drive blank out of the chassis.
Figure 15
Removing the Hot-plug Hard Drive Blank
IMPORTANT: Do not discard the hard drive blank. If the drive is removed in the future, you must
reinstall the hard drive blank to maintain proper system airflow.
2. Install a hard drive.
a. Push the hard drive assembly into the drive bay until it stops.
b. Press the HDD carrier latch inward until it clicks.
