Hardware options installation 46
6.

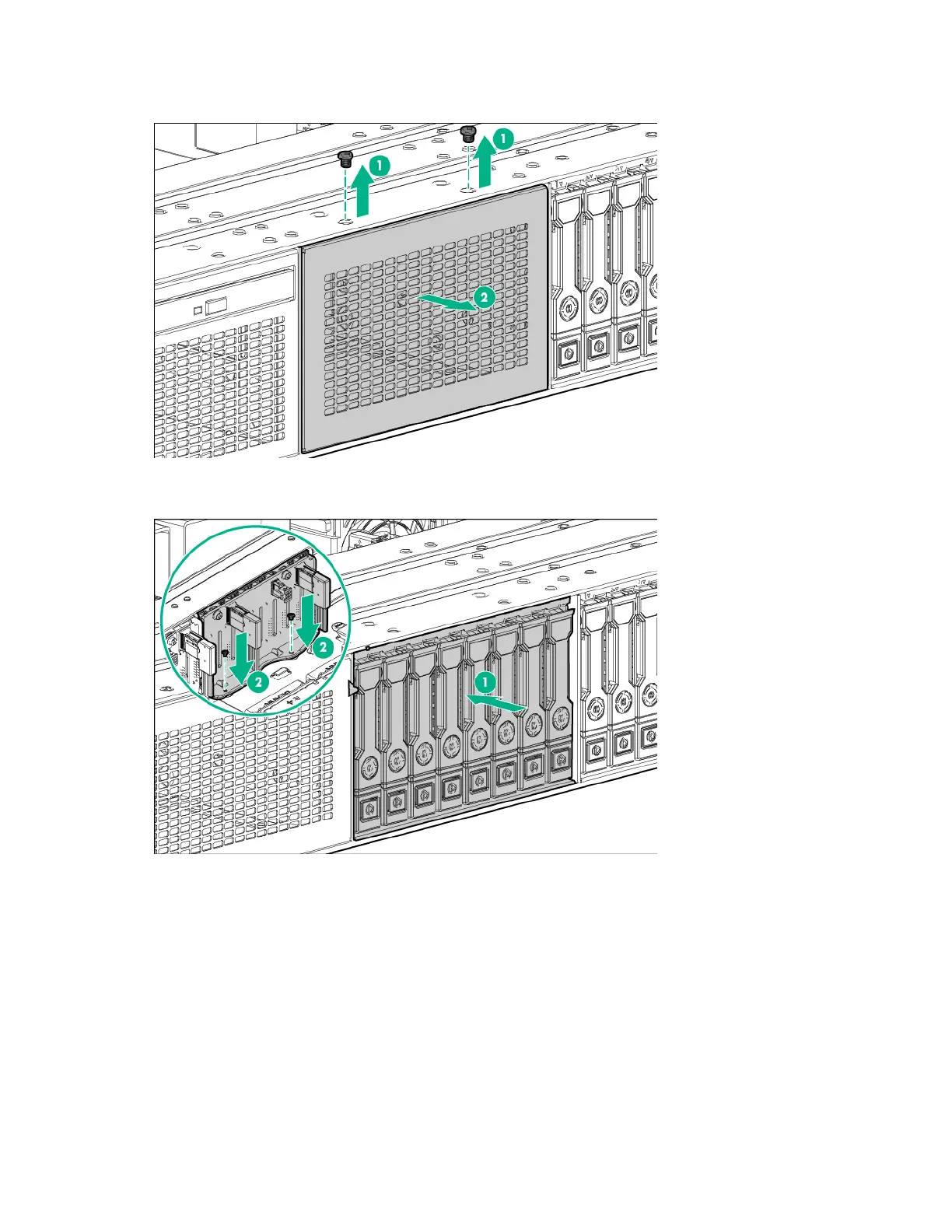

Use a T-10 Torx screwdriver to remove the box 2 SFF drive cage blank screws, and then remove the
blank.
Retain the blank for future use.
7. Install the SFF hot-plug drive cage.
8. Connect the power cable to the new 8-bay SFF hot-plug drive cage:
a. Secure the power cable in the left front chassis cable clip.
