Hardware options installation 51
b.

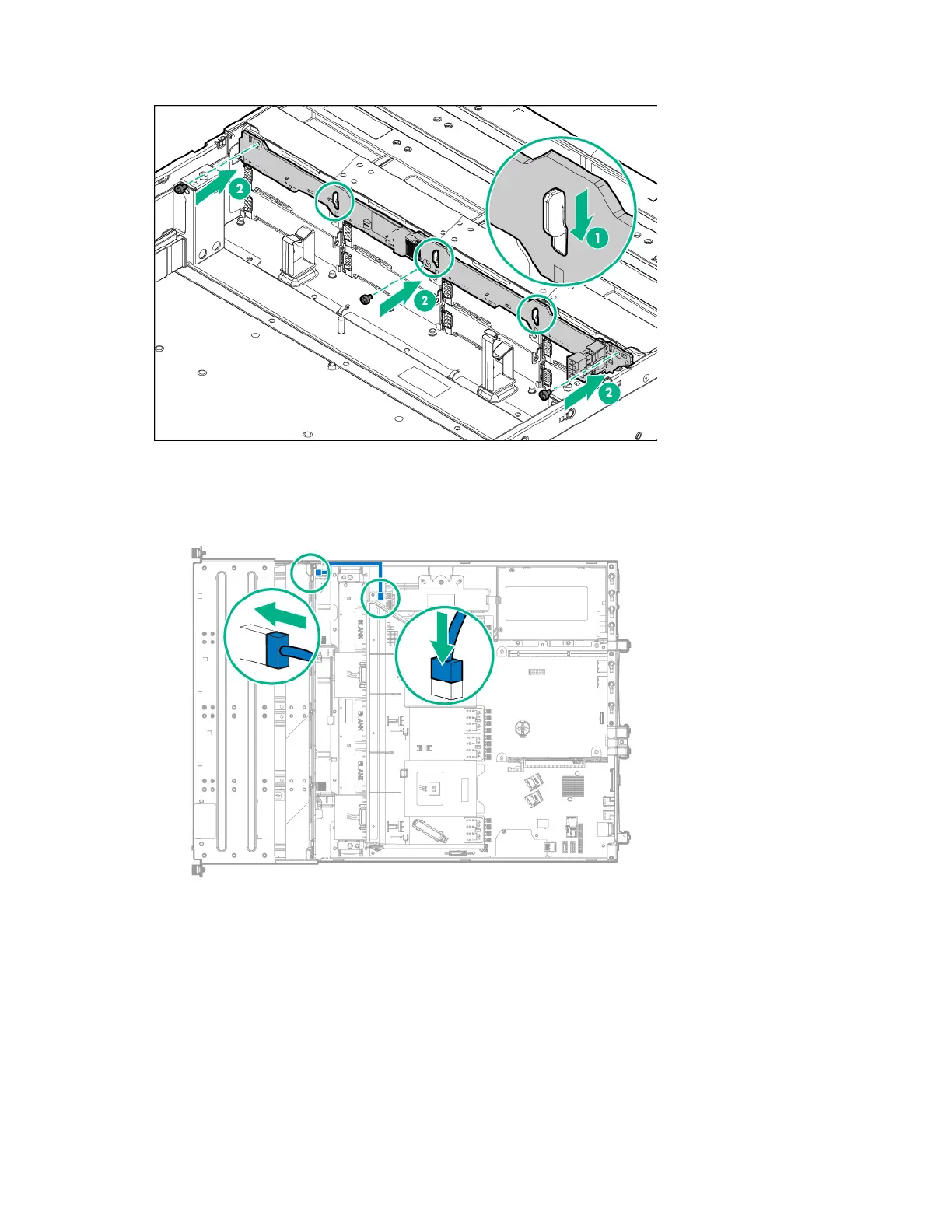

Secure the backplane with the three screws.
12. Install the fan cage.
13. Connect the fan cables.
14. Connect the 12-bay LFF drive identification signal cable to the 8-bay LFF hot-plug drive cage
backplane, and then to the system board.
