Hardware options installation 58
6.

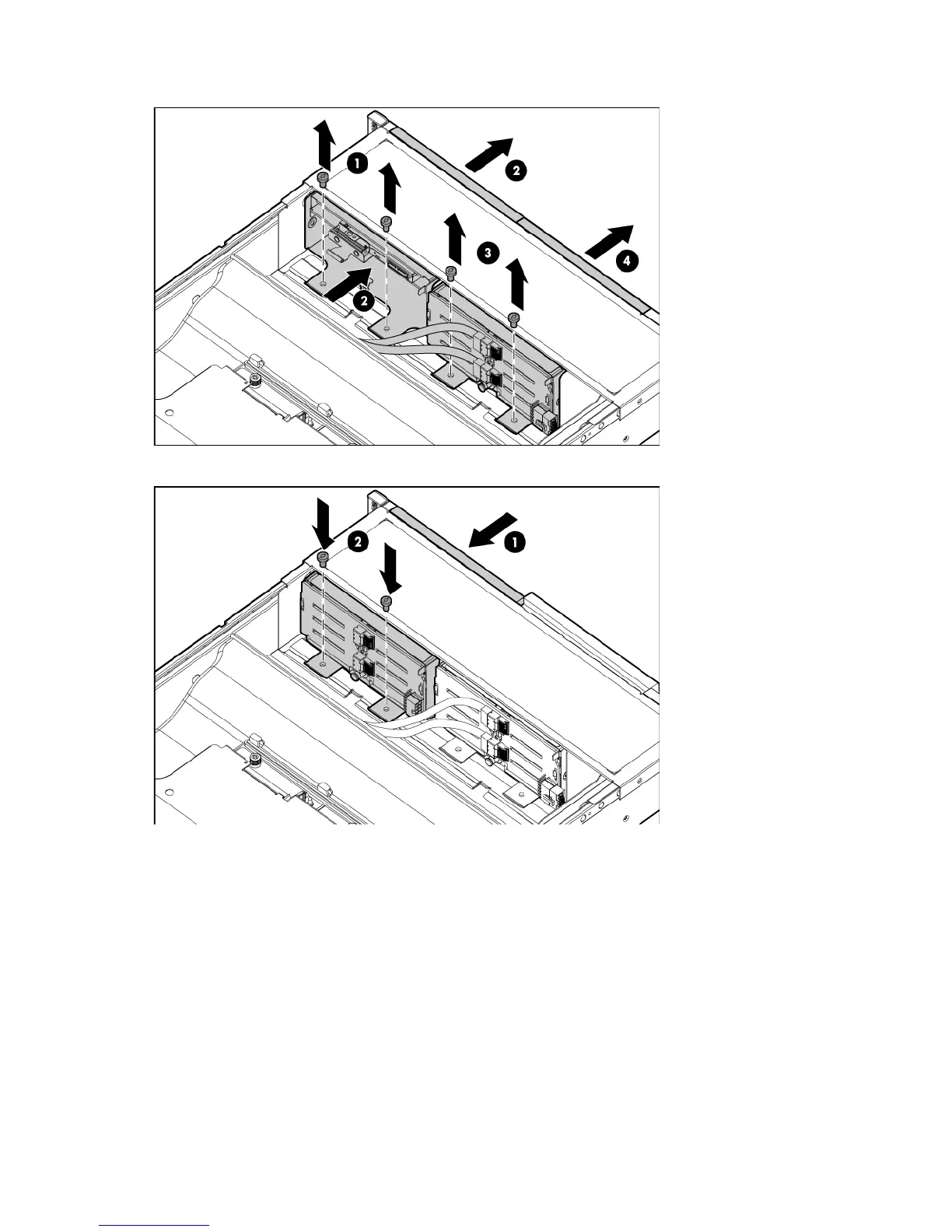

Remove the two primary hard drive retaining screws and slide the cage forward.
7. Install the optional hard drive cage.
8. Install the hard drives and hard drive blanks ("Hot-plug SAS hard drive options" on page 48, "Optical
drive option" on page 50).
9. Remove the PCI riser cage (on page 26).
10. Install the optional SAS controller. For installation instructions, see the documentation that ships with the
SAS controller option.
11. Remove the air baffle (on page 27).
