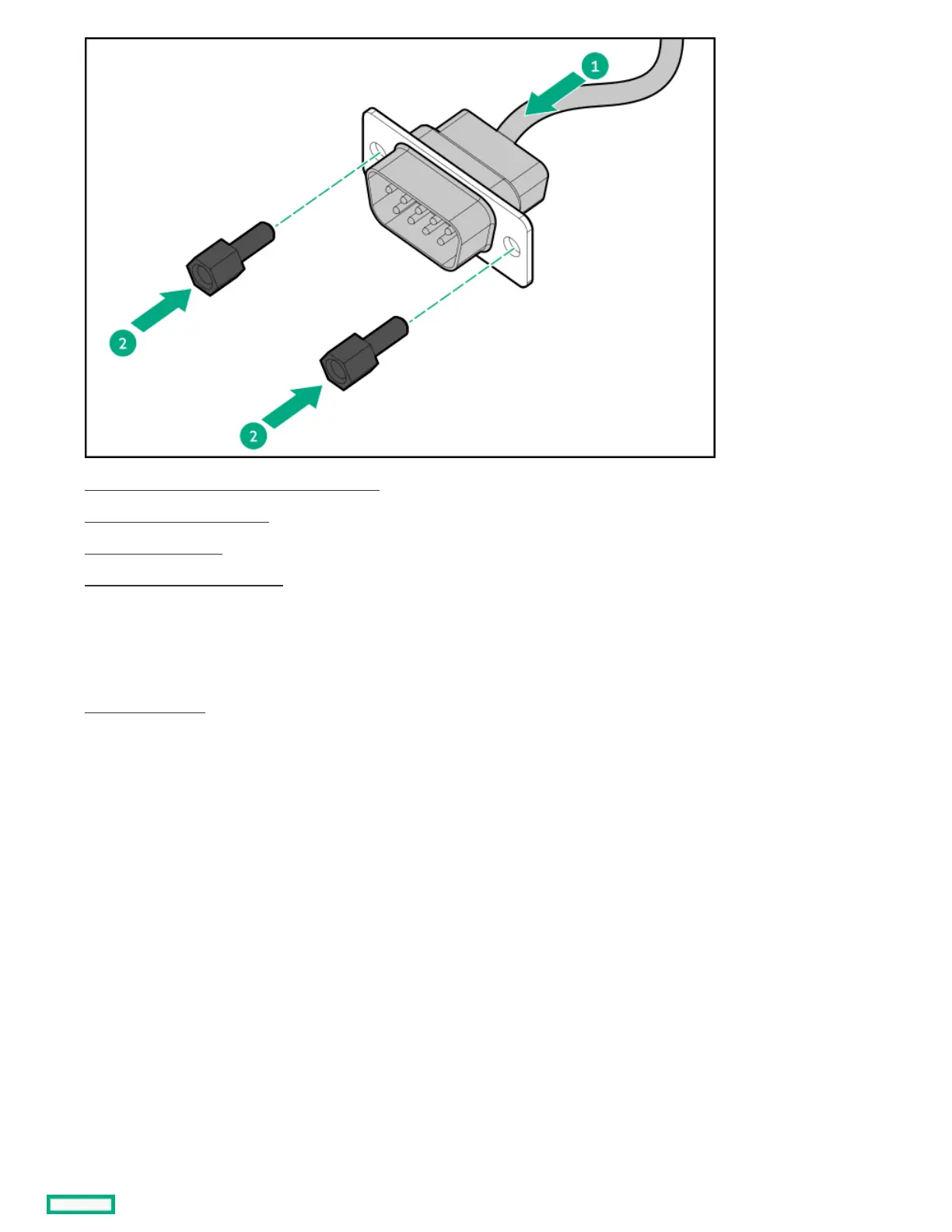

11. Connect the serial port cable to the system board .
12. Install the secondary riser cage.
13. Install the access panel .
14. Installing the server into the rack .
15. Connect all peripheral cables to the server.
16. Connect each power cord to the power source.
17. Connect each power cord to the server.
18. Power up the server .
Configuring the serial portConfiguring the serial port
19. To configure the serial port setting:
a. From the boot screen, press F9F9 to access the UEFI System Utilities.
b. From the System Utilities screen, select System Configuration > BIOS/Platform Configuration (RBSU) > System Options > Serial Port
Options > Embedded Serial Port.
c. Select a setting.
d. Press F12F12 key to save your selection.
e. Click Yes-Save Changes.
f. Click Reboot.
ResultsResults
The installation is complete.
Internal USB device optionsInternal USB device options
The server has one internal USB 2.0 port and one USB 3.2 Gen 1 port that you can use to install an internal USB flash media device for:
