HP ProLiant DL560 Gen11 - 8 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 15; 8 SFF x1 SAS drive controller cabling: Type-p controller in the primary riser

Cable part numberCable part number ColorColor FromFrom ToTo
P55357-001 Orange Box 1 port 1 Type-o storage controller port 2
in Slot 15
Option kit: P60009-B21

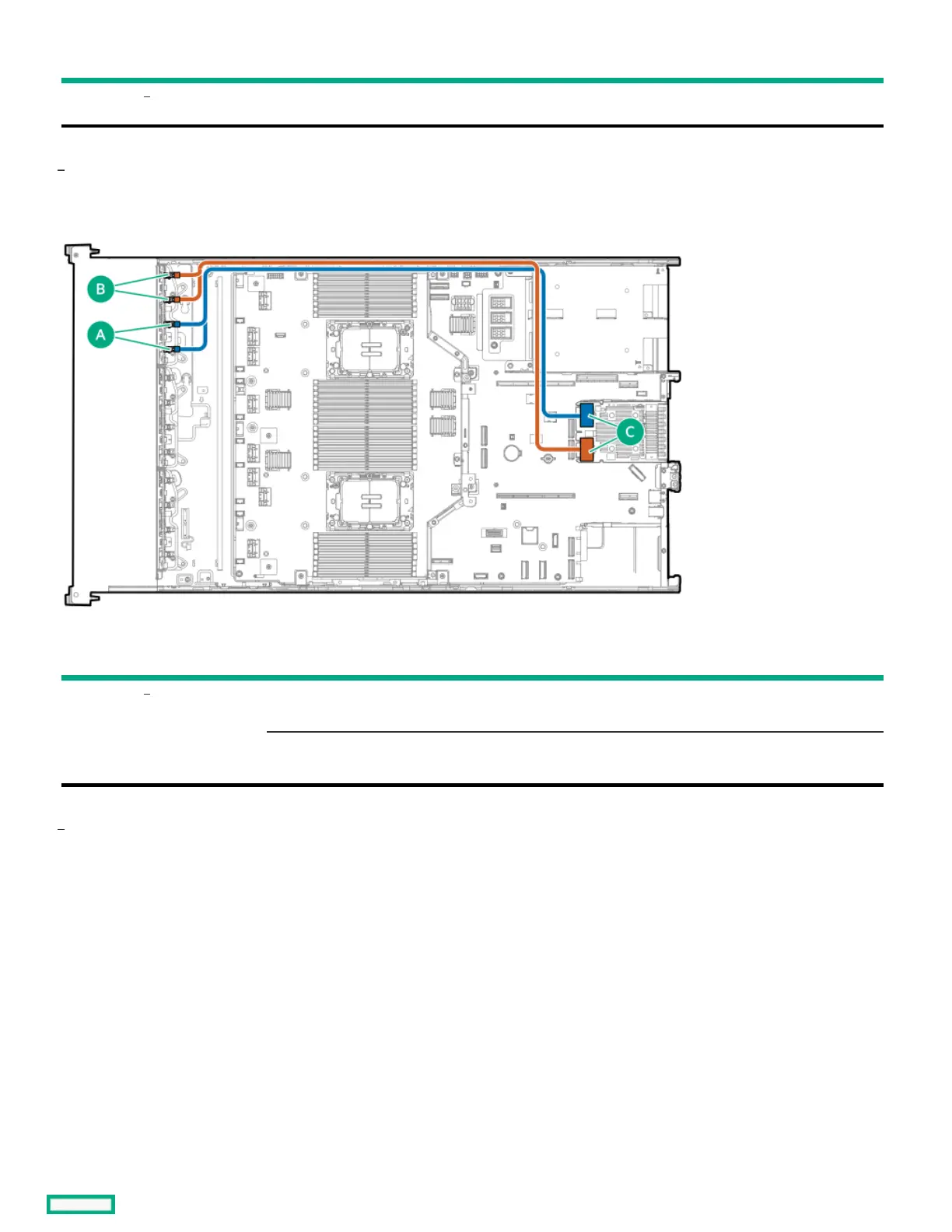

8 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 158 SFF x2 NVMe drive controller cabling: Type-o controller in Slot 15
Cable part numberCable part number ColorColor FromFrom ToTo
P48963-001 Orange Box 1 ports 1–2 Type-o storage controller port 1
in Slot 15
Blue Box 1 ports 3–4 Type-o storage controller port 2
in Slot 15
Option kit: P61602-B21
8 SFF x1 SAS drive controller cabling: Type-p controller in the primary riser8 SFF x1 SAS drive controller cabling: Type-p controller in the primary riser
1
1
1
1
HPE ProLiant DL560 Gen11 Server User Guide 186
